Home>Products>Lights> Q1000 (P/N: FLXQ1DC)

FLXQ1DC FLXQ1DC-AU FLXQ1DC-EU FLXQ1DC-JP FLXQ1DC-UK

Q1000

DiCon Lghting DenseMatrixLED
  • Fillex Q1000
  • Fillex Q1000
  • Fillex Q1000
  • Fillex Q1000
  • Fillex Q1000
  • Fillex Q1000
  • Fillex Q1000
  • Fillex Q1000
Fillex Q1000
Fillex Q1000
Fillex Q1000
Fillex Q1000
Fillex Q1000
Fillex Q1000
Fillex Q1000
Fillex Q1000

The new flagship of the Fiilex line, the Q1000 revolutionizes photo and video work by combining intense power, exceptional light quality, enhanced weather-resistance, and portable power options in one remarkable light. Maintaining the same color spectral versatility of the award-winning Q500, the Q1000 boasts a color tuning range of 2800-6500K. This stunning light is clean and accurate at all color temperatures, receiving outstanding TLCI (≥95) and CRI (≥93) ratings for its precise color rendition. The Q1000 also offers full dimming from 100% to 0% with no color spiking, as well as hue control of ±.25 Magenta/Green for deft hue correction on set. Weighing less than 13 lbs and featuring enhanced weather-resistance (IP-24), battery compatibility, and built-in DMX Control, the compact Q1000 can be easily rigged into any studio or used for on-location shoots. Highly modifiable, this remarkable light pairs with a wide range of Q-Series and P-Series accessories to give you the right look for you shoot. Get the most versatile and powerful LED of its class with the Q1000, and take creativity to the next level.

Separator

FEATURES

  • 1500W-2000W tungsten equivalent, 340W draw
  • Full Dimming
  • IP-24 (Water-Resistant)
  • Extended Color Temperature Range (2800-6500K)
  • High CRI ≥93
  • Weighs Only 12.8 lbs
  • LCD Display & DMX-Ready
  • Flicker Free at any Frame Rate
  • Virtually Heat Free and Cool to Touch
  • Custom Travel Case Available

DOWNLOADS

Q1000 User Manual
Separator

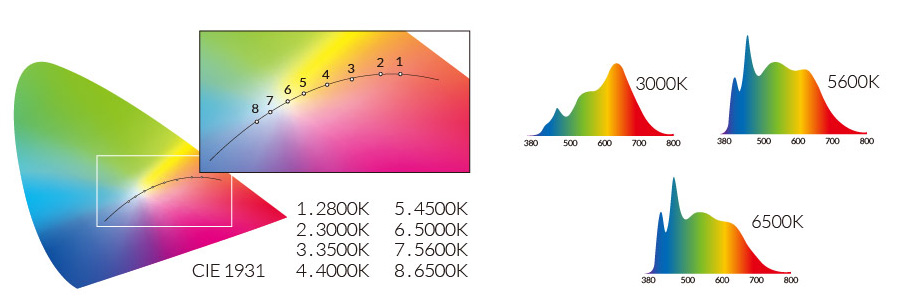

SPECTRAL DATA

Fillex Q1000 CIE1931 3000K 5600K
CRI
Measurement
R1R2R3 R4R5R6R7R8R9
3000K979992969998989692
5600K969998939597959173
6500K959897919497938966
CRI
Measurement
R10R11 R12R13R14R15 CRI
Ra
CRI
Extended
TLCI
Results
3000K929488979496979598
5600K939284979993959397
6500K939083959992949195

*Values in this table are typical.
**CRI Ra is the averaged result of R1 to R8, CRI Extended is the averaged value of R1 to R15.

Separator

SPECIFICATIONS

SizeL 12.8″ x W 12.75″ x H 15.7″ (with Yoke)
350mm X 325mm x 400mm with yoke
L 12.8″x W 9″ x H 6.75″ without
350mm X 230mm x 172mm without
Weight (Include Yoke)12.8 lbs / 5.8kg
Ballast Weight5.1 lbs / 2.3kg
IP RatingIP- 24 (Water-Resistant)
LEDDense Matrix LED
Thermal DesignAdvanced Vapor Cooling System
Beam Angle63° (Without Accessories)
32°-57° (With 5″ Fresnel Lens)
12°-26° (With 8″ Fresnel Lens)
CCT Range2800-6500K Continuous Tuning
Hue Control±.25 Magenta/Green
CRI≥93
LED Lifetime42,000 hrs
Power Consumption340W Max AC / 300W Max DC / Comparable in Output to 1300W Tungsten
Input VoltageAC Power: 100-240V AC, 50~60Hz, Max 340W
DC Power: 48-54V DC, Max 300W
Input PortDetachable Power Con Cable
DMX Control2 XLR ports and 2 RJ45 ports (512 Addresses)
Temperature Range32-104ºF / 0-40º C (over Temperature Protection)
Mount StyleBaby Stud 5/8" Female (16mm) and
Junior Stud 1-1/8" Male (28mm)
Barndoor Mount SizeSize III

Separator

SHOWCASE

The Flagship of the Fiilex Line

Get the most versatile and powerful LED of its class with the Fiilex Q1000. With an intense 1500W output, color tunability (2800-6500K), full dimming, exceptional color rendition (CRI ≥93), enhanced weather-resistance (IP-24), and portable battery options, the lightweight Q1000 lets you take creativity to the next level. [00:48]Play

Q-Series

The Q-Series is where you'll find the most powerful point-source lighting fixtures that Fiilex offers. [01:56]Play

Pro-Tip: Hue Control

Hue Control is the perfect tool for getting your skin tones just right. Save hours of hassle in color correction with the twist of a dial! [00:32]Play

Separator

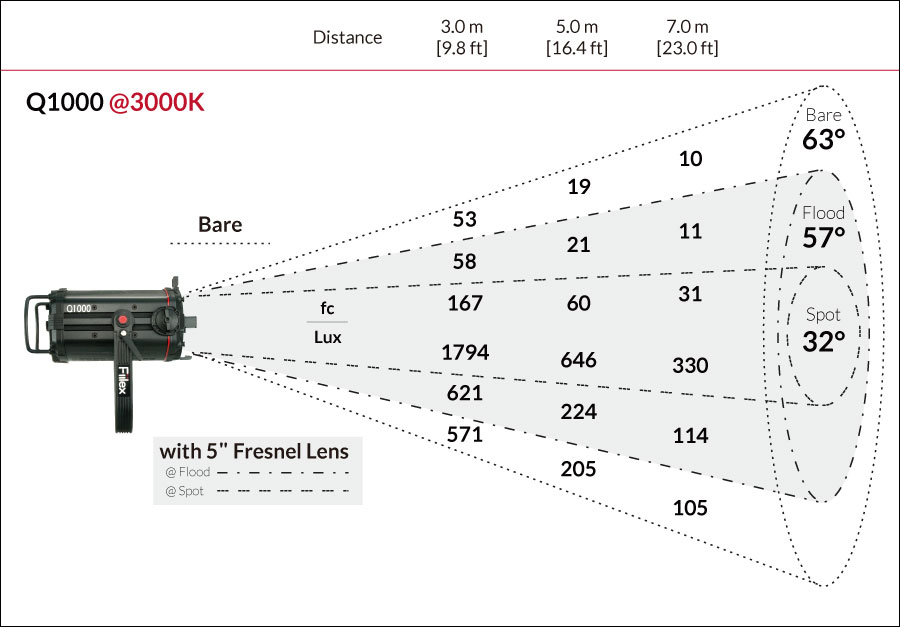

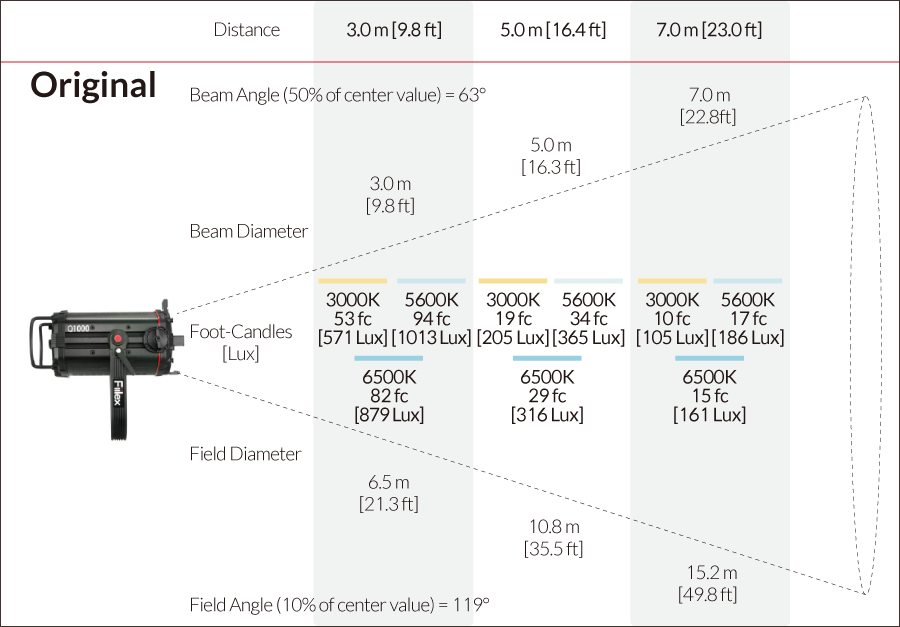

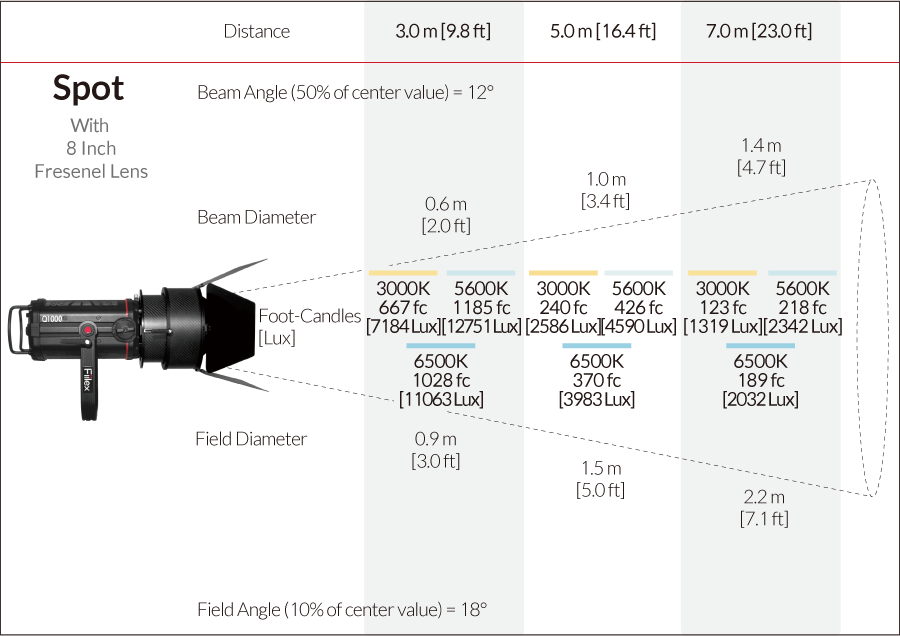

PHOTOMETRIC DATA

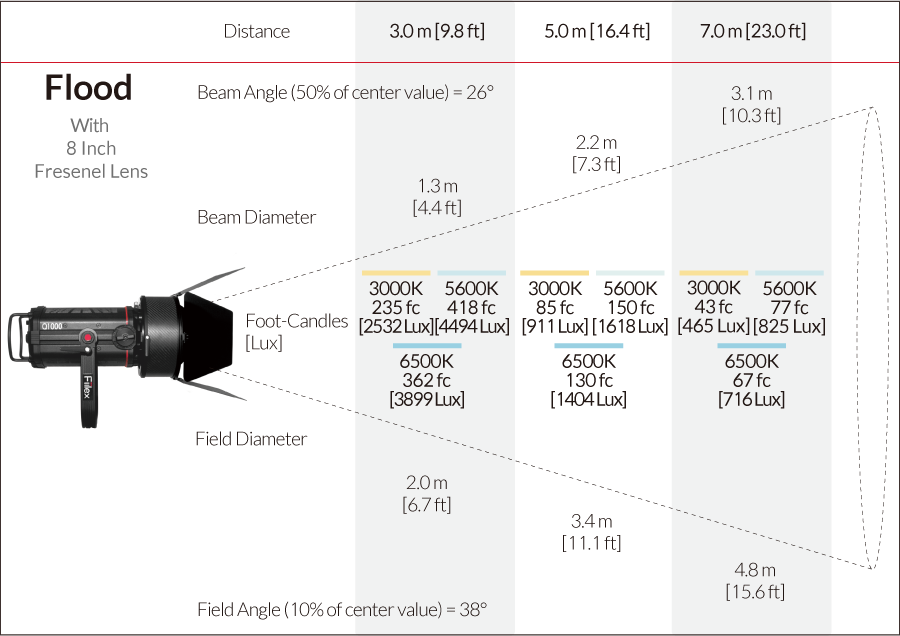

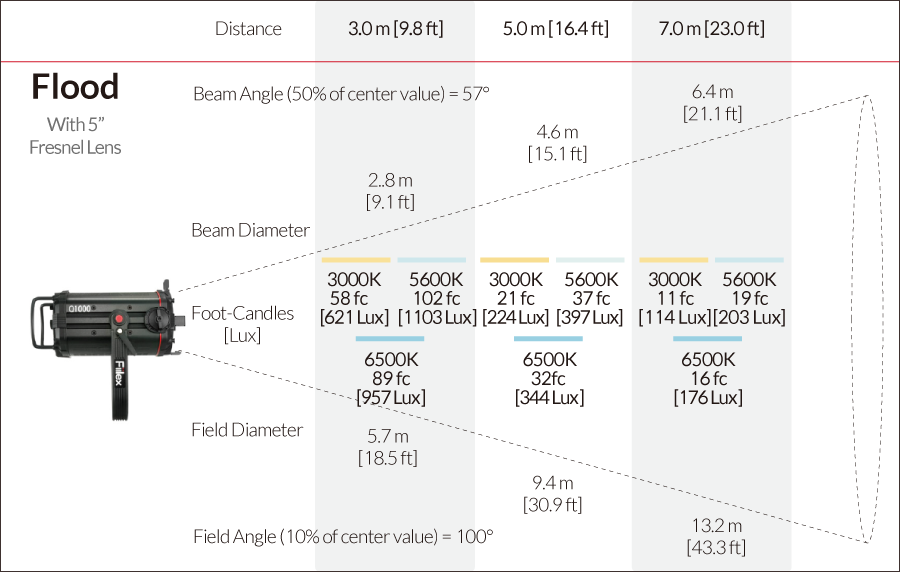

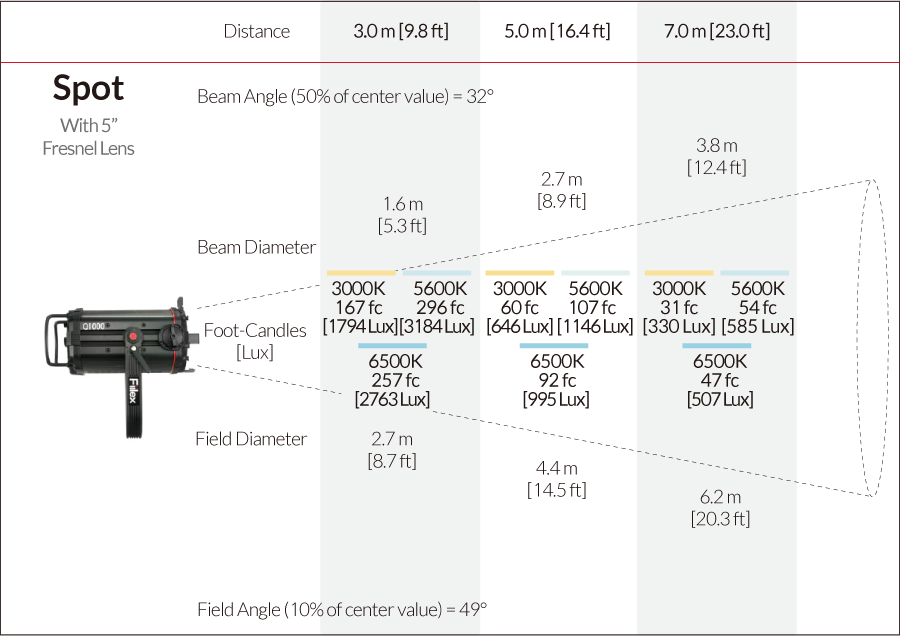

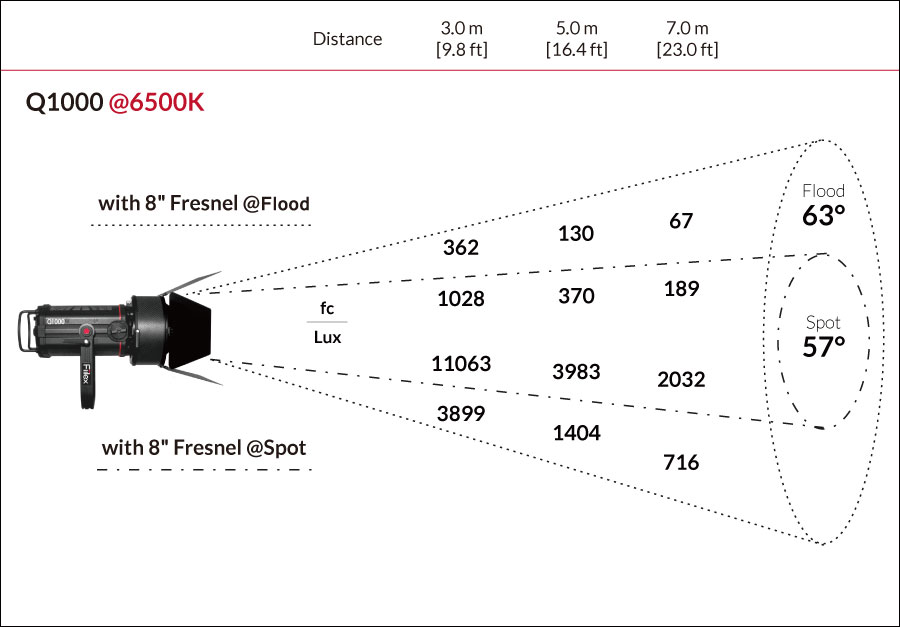

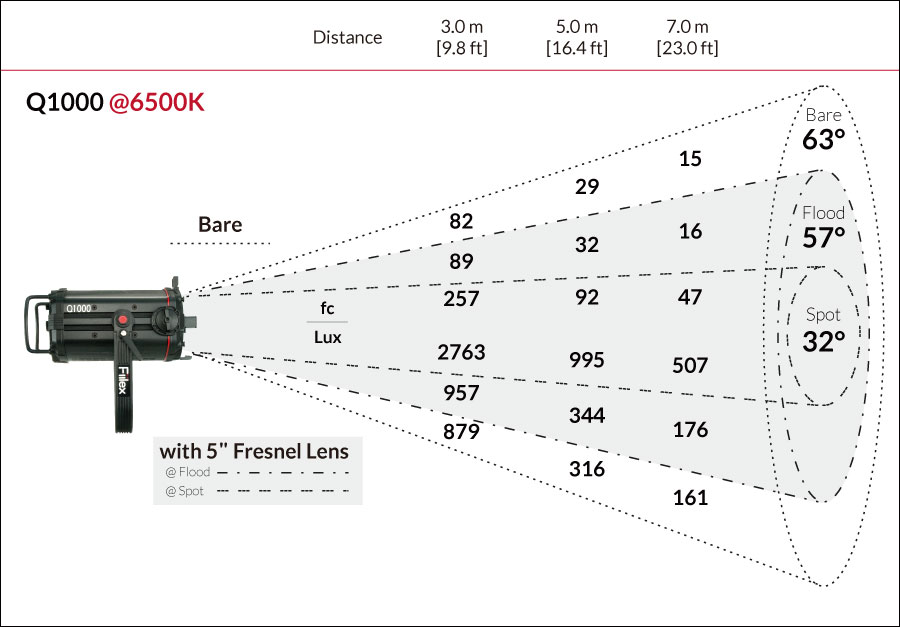

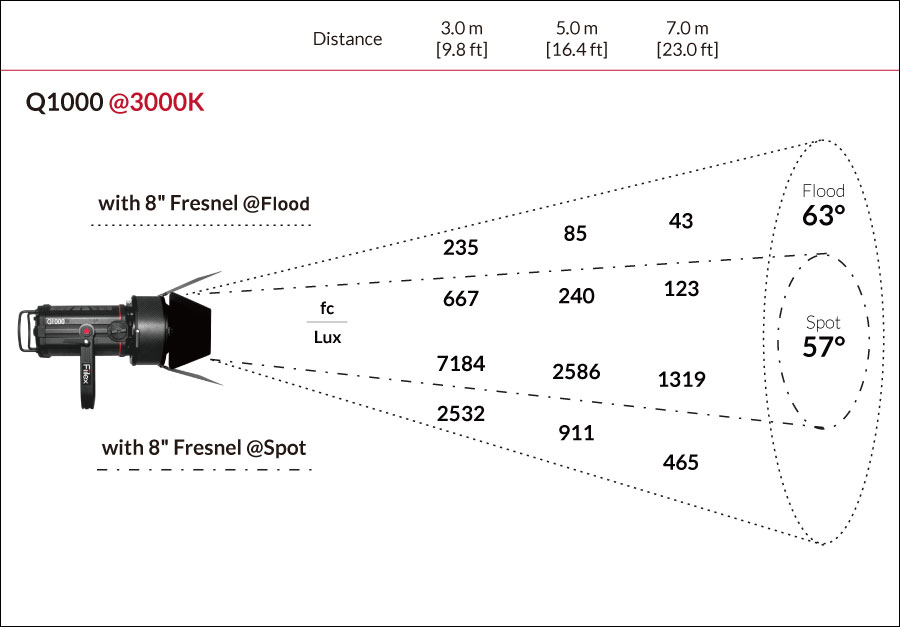

Fiilex Q1000 Photometric figure

Fiilex Q1000 Photometric figure

Fiilex Q1000 Photometric figure

Fiilex Q1000 Photometric figure

Fiilex Q1000 Photometric figure
Separator

Items Included

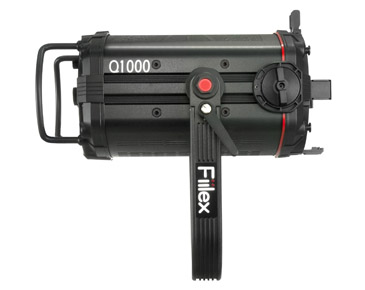

(1) Q1000-DC Light Head

(1) Size III Barndoor

(1) 5-Inch Fresnel Lens

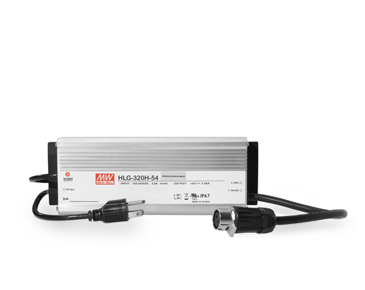

(1) Power Adapter

(1) 20' PowerCon Cable

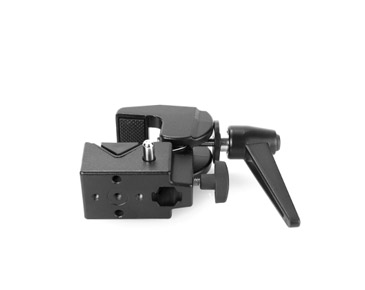

(1) Clamp Mount

(1) Cord Tie

Separator

Compatible Accessories

Fiilex LED Accessory - 8 Inch Fresnel Lens

8-Inch Fresnel Lens


Fiilex LED Accessory - Para Softbox Kit for Q Series

Para Softbox Kit


Fiilex LED Accessory - Medium Softbox Kit for Q Series

Medium Softbox Kit


Fiilex LED Accessory - Extra Small Softbox Kit for Q Series

Extra Small Softbox Kit


Fiilex LED Accessory - PAR Reflector for Q Series

PAR Reflector


Fiilex LED Accessory - Speed Ring for Q Series

Speed Ring (Q-Series)


Fiilex LED Accessory - Dome Diffuser

Dome Diffuser



Fiilex LED Accessory - Dome Diffuser Extension

Dome Diffuser Extension

Fiilex LED Accessory - 2 Inch Fresnel Lens

Fresnel Lens




Separator

Kits Containing Q1000-DC

Fiilex K154 Lighting Kit

K154 kit

(1x) Q1000



Fiilex X254 Lighting Kit

X254 kit

(2x) Q1000
