Below are some of the batteries and adapters that are compatible with our fixtures.

Portable Lights

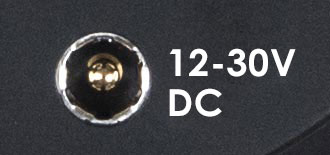

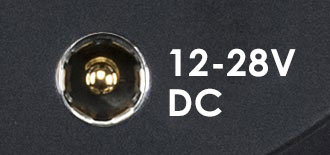

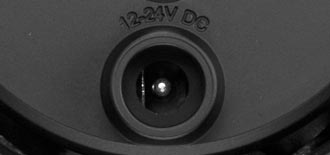

	P180 ENG	P360S / P360 Pro Plus / Pro / Classic	P360EX / P360
DC Draw	40W	80W	85W
Input	12-24V DC	12-30V DC	12-28V DC
Input Port	2.5mm DC Jack	2.5mm DC Jack	2.5mm DC Jack

• V Mount Battery with Fiilex V-Mount Plate and a D-Tap Cable (Coiled or Straight).
• Any V Mount Battery within the specified voltage range. Popular options include Anton Bauer, IDX, and Blueshape.

Generation II (Q1000 II / Q8 Travel / Matrix II RGBW & TW)

DC Draw	300W	*3-pin XLR power cables. NOT audio cables. DO NOT connect audio cables to a power input.
Input	48V DC

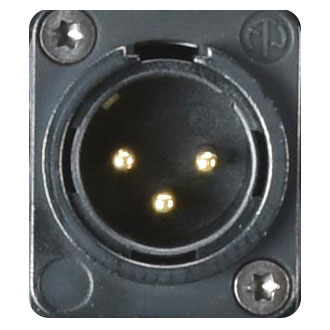

Input Port	XLR-3P*

• Any 48V power station with an XLR-3P input cable. Popular options include BLUESHAPE, Block Battery, and FXLion.

Generation I (Matrix I / Q1000 I)

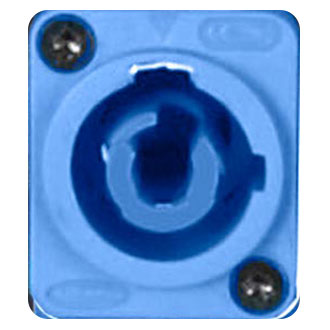

DC Draw	300W	*Neutrik powerCON (20A) NAC3MPA-1 outlet, NAC3FCA connector
Input	45 - 54V DC
Input Port	powerCON*

• Due to the lack of readily available powerCON connector cables, we recommend the Interfit Nomad Portable Battery.
