DMX Controller

P/N: FLXA075

  • Fiilex DMX Controller
  • Fiilex DMX Controller

The Fiilex DMX Controller is a compact and streamlined solution for users looking to take full advantage of their DMX-compatible Fiilex lights. With an intuitive touchpad and LCD display, the DMX Controller interface is simple to navigate and adjust through its various control modes and settings.

The Controller can adhere magnetically to any metallic surface, and if no metallic surfaces are available, the metal back plate can be mounted to provide one. The included Unit Link Cable connects directly to compatible P-Series lights. Additional cables are sold separately. Connections to Q-Series and Matrix lights require Cable Adapter accessories.




Separator

Control Modes

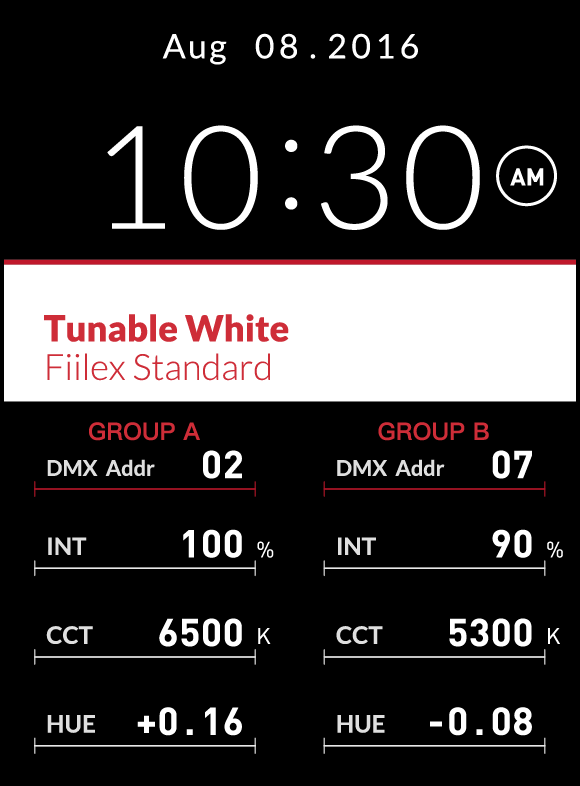

Fiilex Standard

Standard control mode is designed for DMX-compatible Fiilex lights (not including P360EX). Lights can be assigned to two different groups, then adjusted via direct control or programmable playlists.

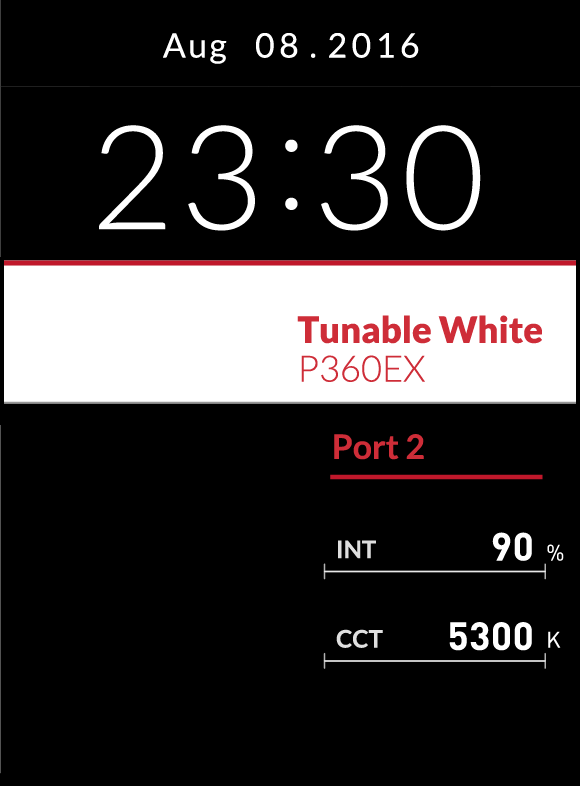

Fiilex P360EX

P360EX control mode allows direct manual control of P360EX lights. With the Fiilex DMX Controller, users can control P360EX lights without purchasing the DMX Connection Box accessory.

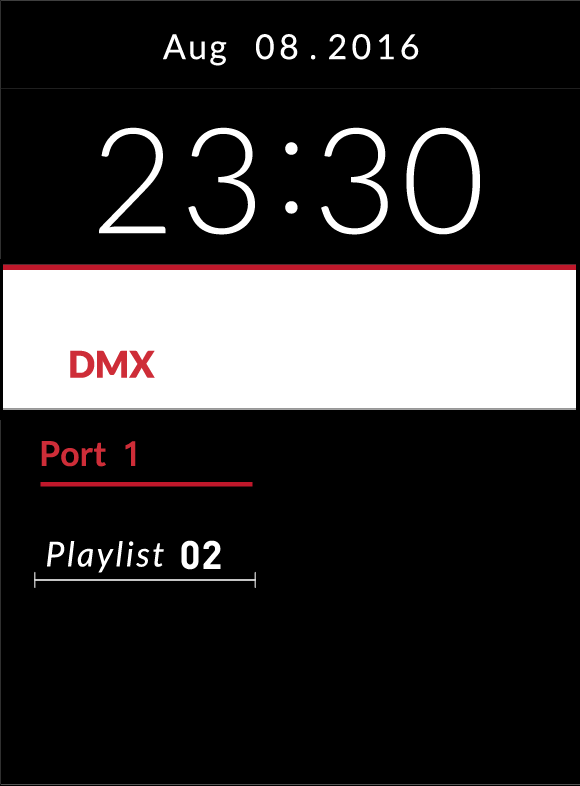

DMX

DMX mode is for advanced users who wish to control their lights without the streamlined Fiilex interface. In this mode, DMX values can be adjusted across 48 channels via direct control or programmable playlists. Profiles can be created to facilitate playlist creation. This control mode is also recommended for users who wish to incorporate non-Fiilex lights into their setups.

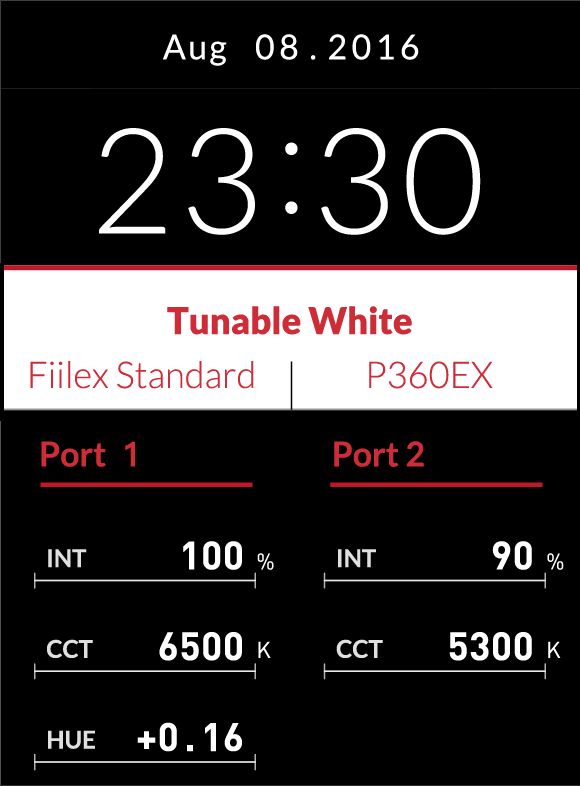

Fiilex Mixed

Mixed control mode allows for the simultaneous control of one Fiilex Standard group and one group of P360EX lights.

Separator

Features »

  • Multiple Control Modes for Streamlined Operation
  • Supports 48 DMX Channels
  • Stores 8 playlists
  • Up to 10 Scenes per Playlist
  • 20 Profiles for DMX Mode Playlists
  • Blackout Mode
  • Touchpad Controls
  • LCD Screen
  • Magnetic Mounting
  • Additional Port for Direct P360EX Control
  • Powered via Micro-USB

Specifications »

Size 5.6" x 2.5" x 0.6" / 142 mm x 64 mm x 14 mm
Weight 0.238 lb / 108 g
Power Consumption 1W Max
Input Voltage 5VDC ±5%

Separator

Items Included »

Fiilex DMX Controller

(1) DMX Controller

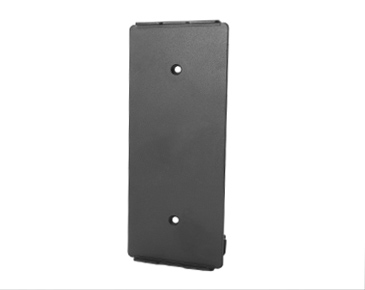

Fiilex Magnetic

(1) Magnetic Back Plate

(1) Link Cable

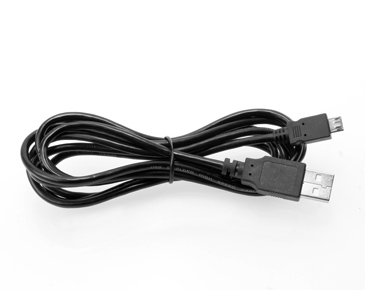

Fiilex Micro-USB Cable

(1) Micro-USB Cable

Fiilex Power Adapter

(1) Power Adapter

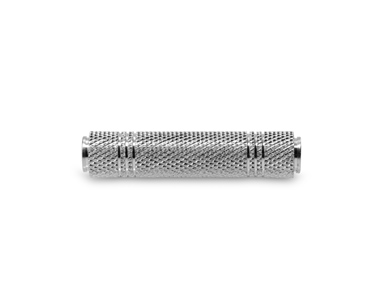

Fiilex Link Coupler

(1) Link Cable Coupler



Compatible with »

Fiilex Matrix

Matrix


Fiilex Q1000

Q1000


Fiilex Q500-DC

Q500-DC


Fiilex Q500-AC

Q500-AC


P360 Pro Plus


P360 Pro


Fiilex P360EX

P360EX
