MOTO QUAD

1360W RGBW Fresnel Punch Light

16bit DMX Motorized Pan, Tilt
5K Tungsten Equivalent
100°, 30° and 18° lenses

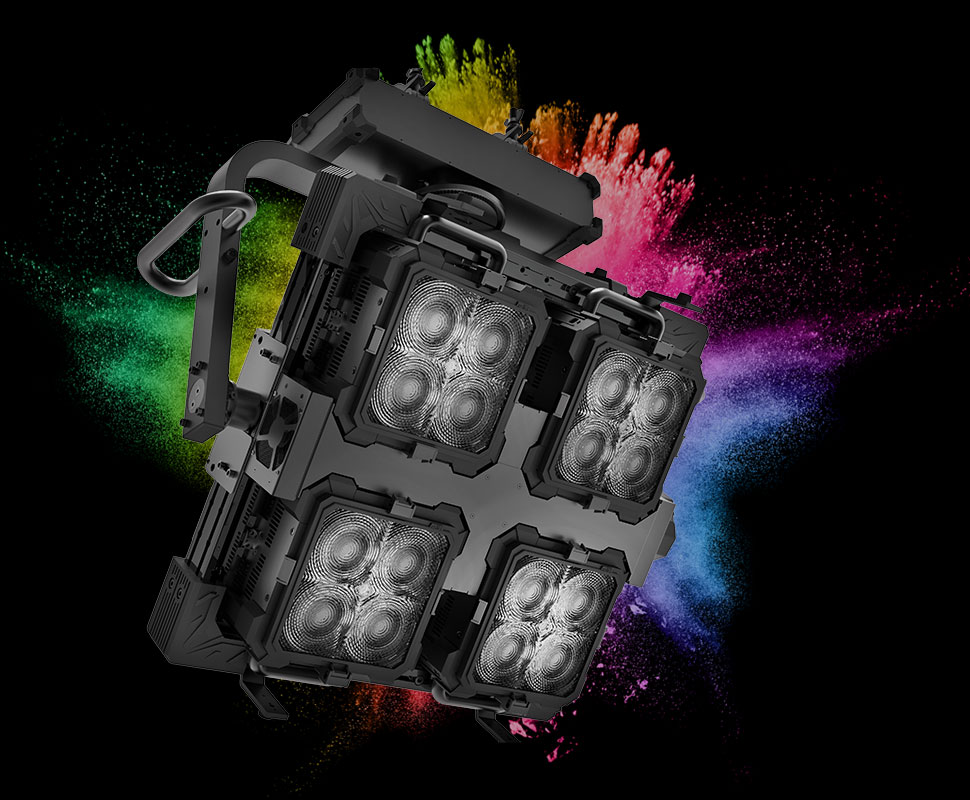

Fiilex MOTOQUAD

The MOTO-QUAD, adds motorized Pan and Tilt to the Fiilex QUAD COLOR. High-resolution encoders mean the position can be precisely adjusted, saved, and recalled from the head or DMX console. No more ladders and pole-ops. Like all Fiilex products, the MOTO-QUAD is also IP rated so you can leave it out in the rain.


Warning: Undefined array key "text" in C:\WebSite\fiilex.com\products\compatible\inner_feature.php on line 25

Warning: Undefined array key "text" in C:\WebSite\fiilex.com\products\compatible\inner_feature.php on line 25


Request More Info

All fields are required for submitting this request


Name*
Email*
Phone*
City*
State/Province*
Country*
Comments*

Experience with Fiilex, Affiliations (Local 728/479/52/873/600 etc), Upcoming Projects.


Enter the displayed 6-character code in the box below
(6 characters, no space in between, not case sensitive.)


Separator

FIXTURES & KITS

Fiilex MOTOQUAD

FLXMOTOQUADCLR

Separator

ACCESSORIES

Fiilex Matrix Fresnel Lens 30deg

FLXMXCLR-FRNL30

Fiilex Matrix Fresnel Lens 18deg

FLXMXCLR-FRNL18

Separator

SPECIFICATIONS

Beam Angle100° (30° or 18° with fresnel accessories)
CCT Range2000-10000K continuous tuning + magenta/green shift
CRI / TLCI 95 / 90 typical
Control ModesCCT, HSI, RGBW, Gels, Effects, CCTRGBW, CCTHSI, CIExy, ICTHS, and more
Dimming100% - 0% flicker free
Dimming ModesSmooth, Sharp
Light EngineDiCon Dense Matrix LED
Power Draw1360W max AC
BTUs/hour4436 (BTUs/hour) max
AC Input100 - 240V AC, 50~60Hz (via powerCON TRUE1)
DMX/RDM Interface DMX/RDM PORT | XLR-5
Wireless Control Integrated LumenRadio
Ethernet sACN, ArtNet (via RJ45)
USB Power Output 5V/1A (via USB-A)
Weight99lbs / 45kg
Size (L x W x H)2’ 10” x 10.8” x 2’ 8” / 86.6cm x 27.5cm x 82.3cm
Pan / Tilt+/- 150º motorized (with manual override)
Mount TypeIncluded 1.5-2” pipe clamp or Junior stud 1-⅛” male (28mm)
IP RatingIP-X5 (rain-resistant)
Thermal DesignAdvanced cooling system (fan cooled)
Operating Temperature 0-40ºC / 32-104ºF
