SPECIFICATIONS

Beam Angle	19° / 36° / 50°
CRI/TLCI	95/90 typical
Dimming	100% - 0% flicker free
AC Power Draw	40W max
AC Input	100 - 240V AC, 50 - 60Hz
Remote Control	Manual, DMX 512
Cooling	Passive Cooling
Acoustic Noise	0 dBA (none)
Operating Temp.	32 - 104ºF (0 - 40ºC)
Weight (Fixture + Power Supply)	6.2lb / 2.8kg (TOX-PSP Type) 5.8lb / 2.6kg (TOX-PST Type) 7.1lb / 3.2kg (CLP-PSV Type) 6.7lb / 3.0kg (CLP-PST / MPT-PSM Type)
Gobo Size	E Size (Diameter 37.5mm / Max Image: 28mm)
Gobo Holder	Max Thickness: 0.3-1.2mm (Steel) / 1.0-2.0mm (Glass)
Approved Regulatory Standards	cETLus, FCC, CE, UKCA, RoHS, WEEE

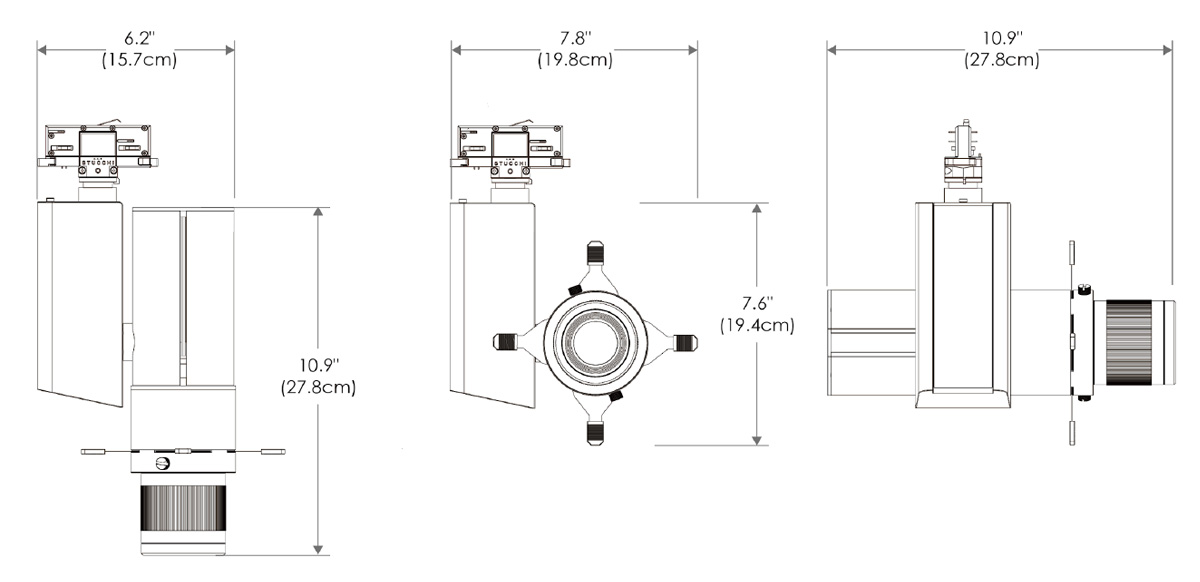

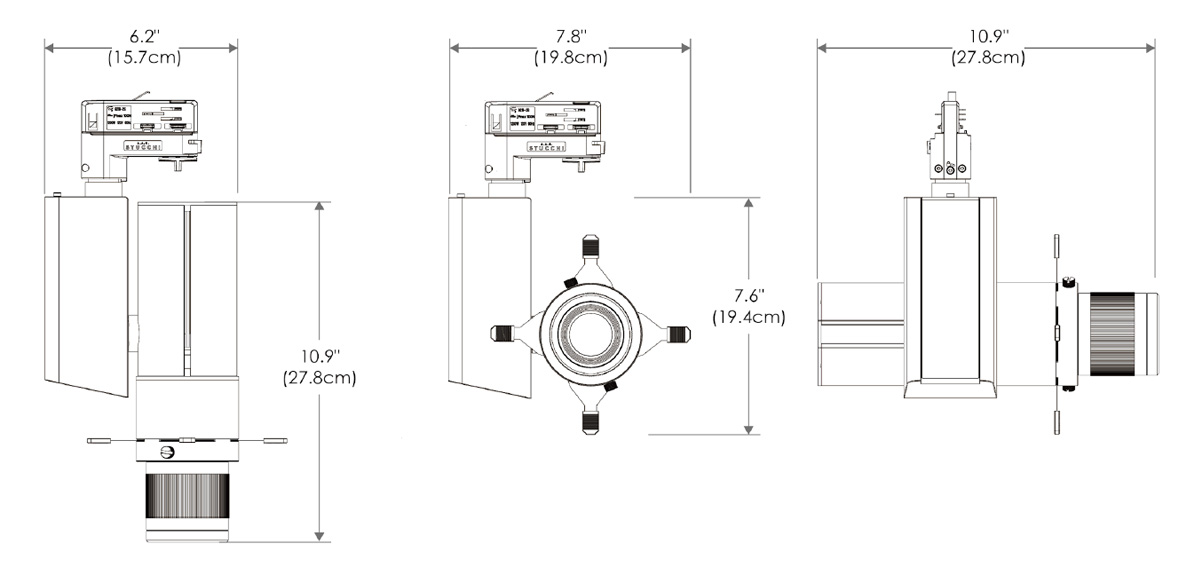

MECHANICAL FIGURES

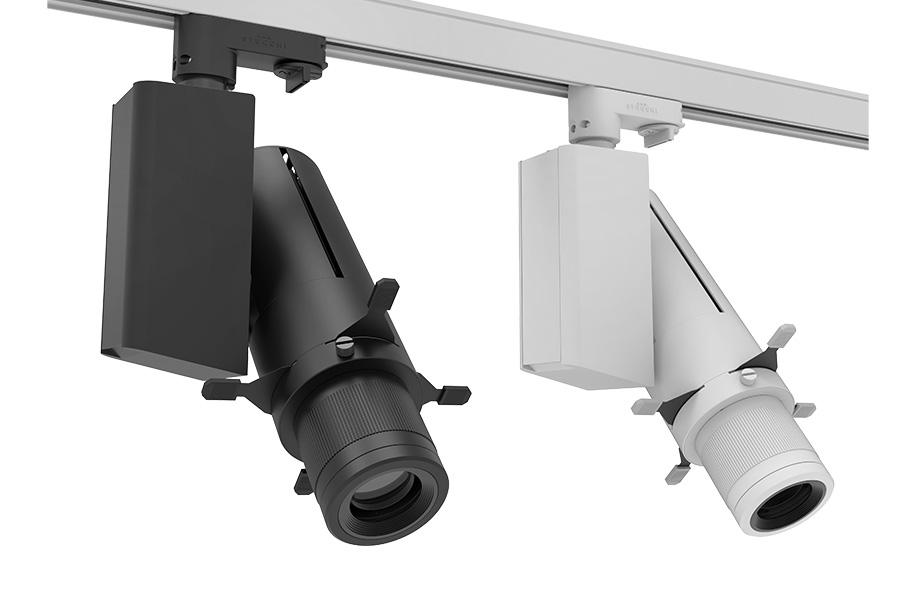

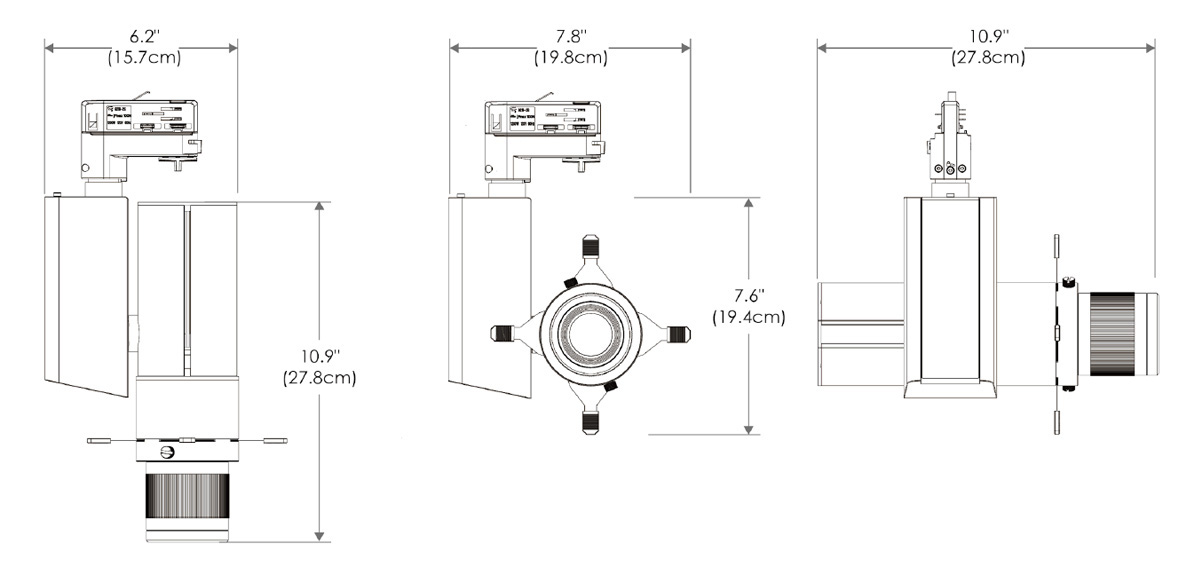

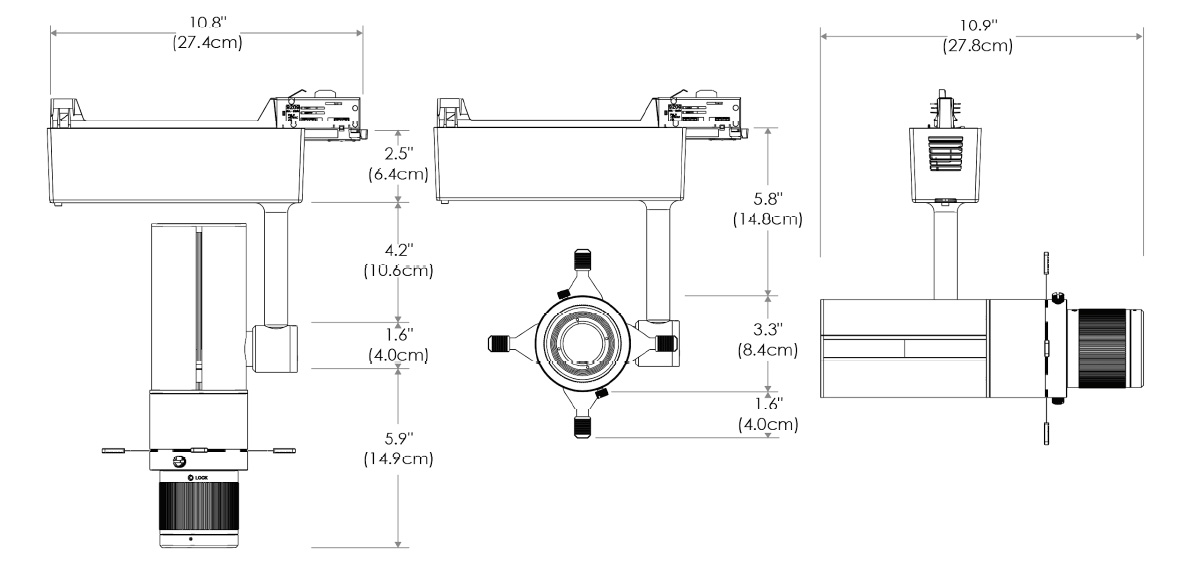

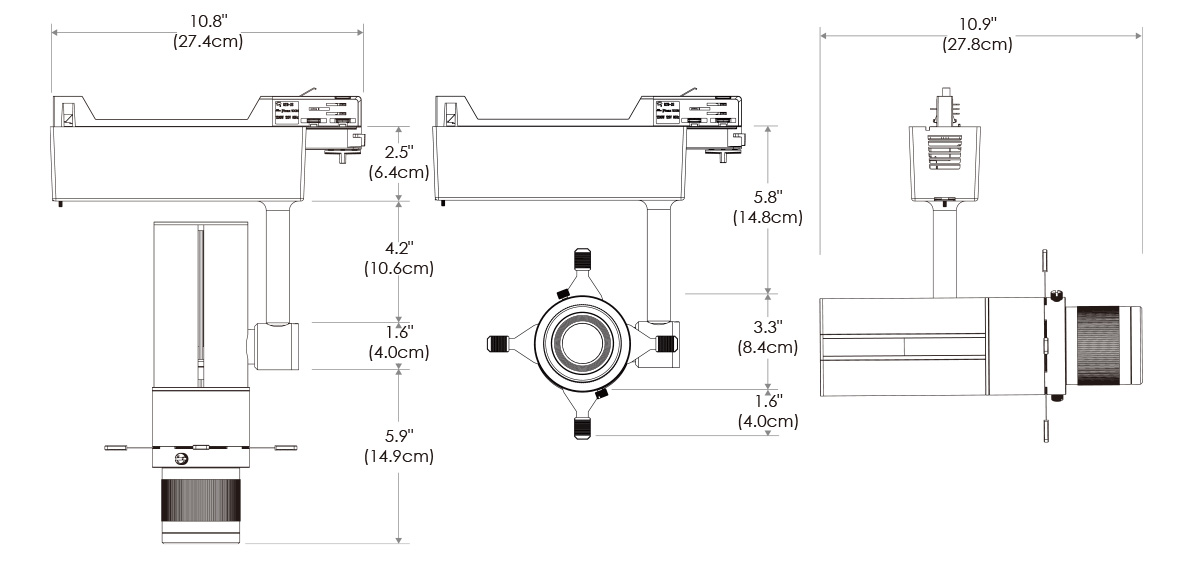

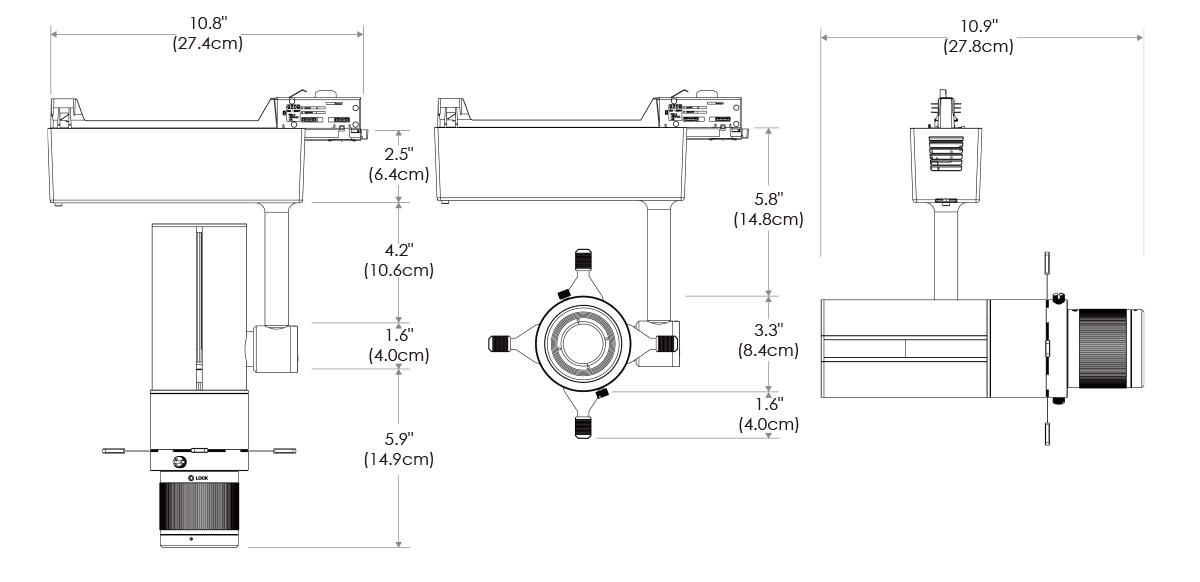

P1L (Track)

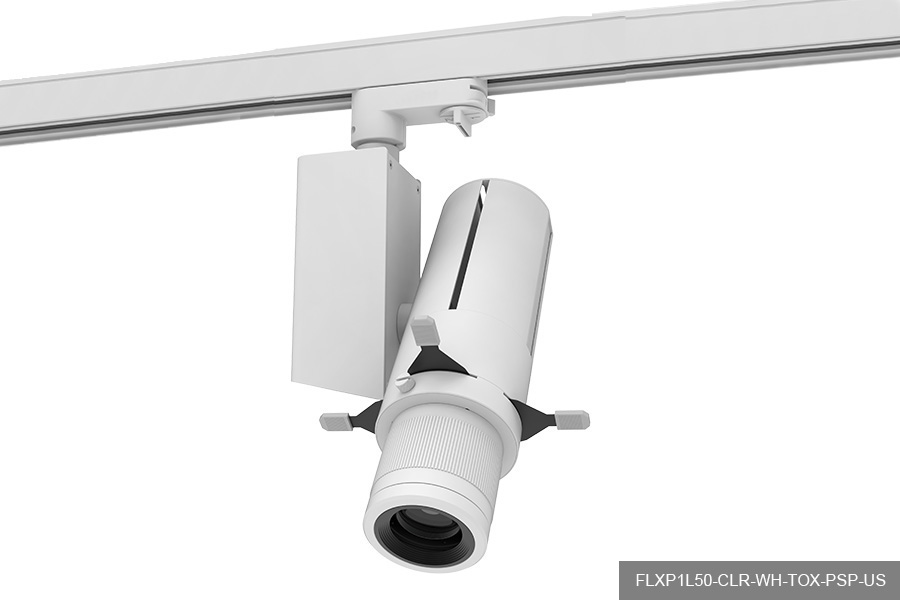

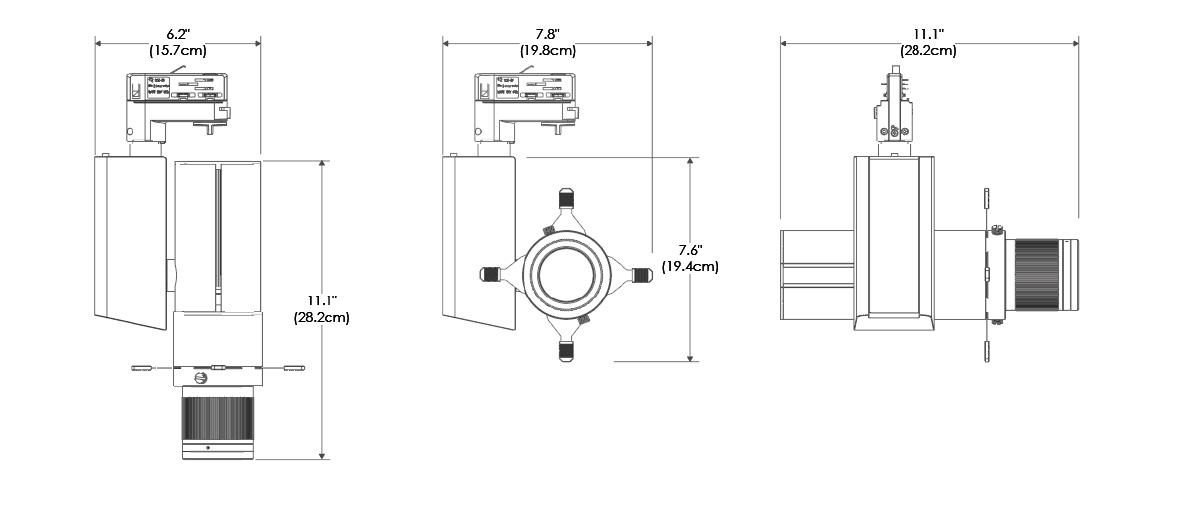

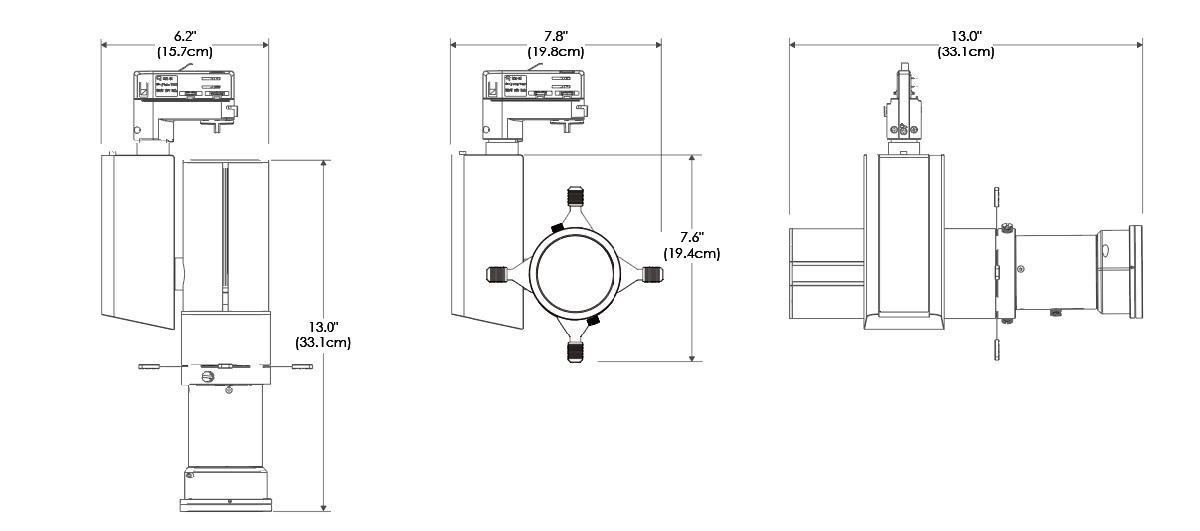

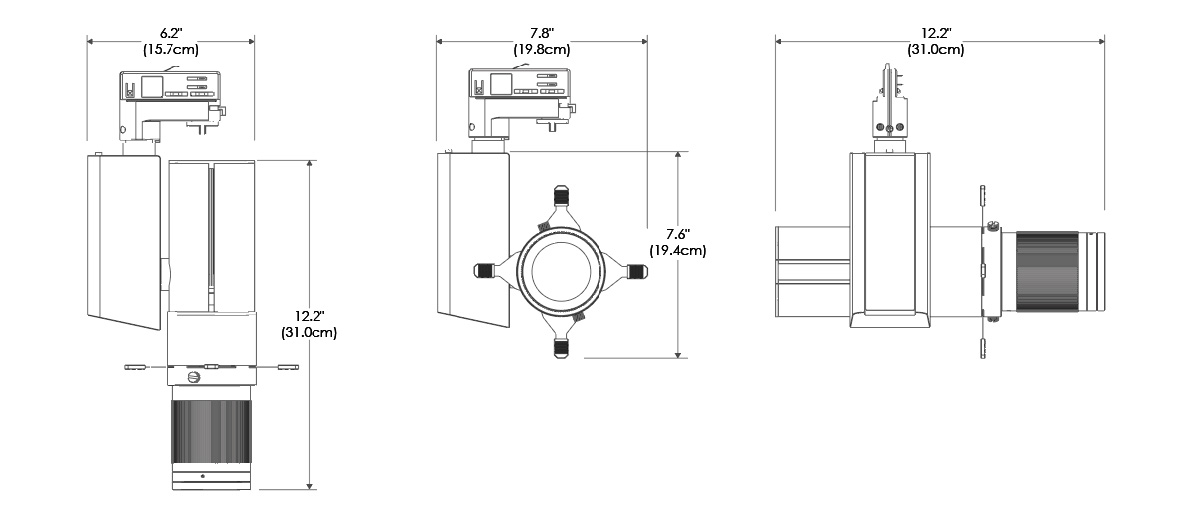

PSP

PSP

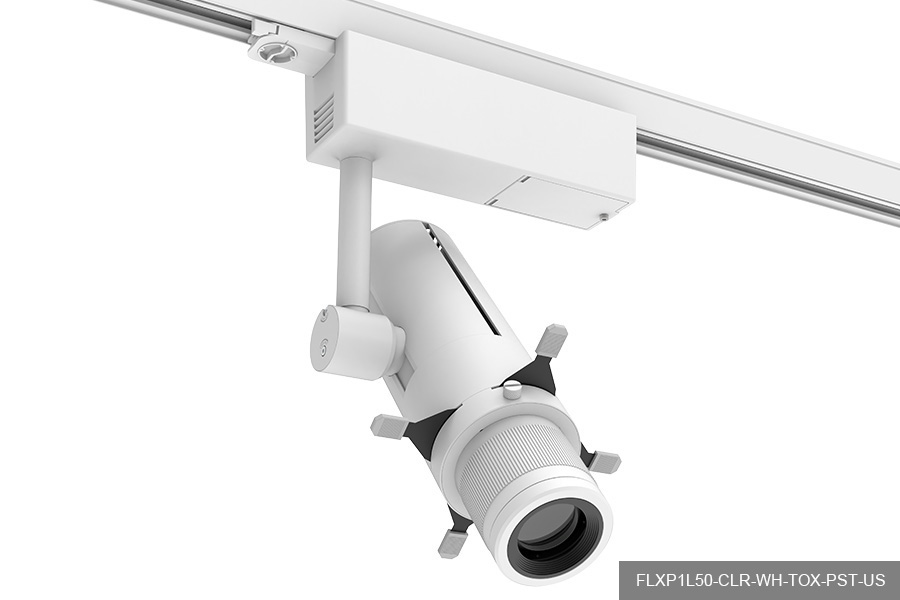

PST

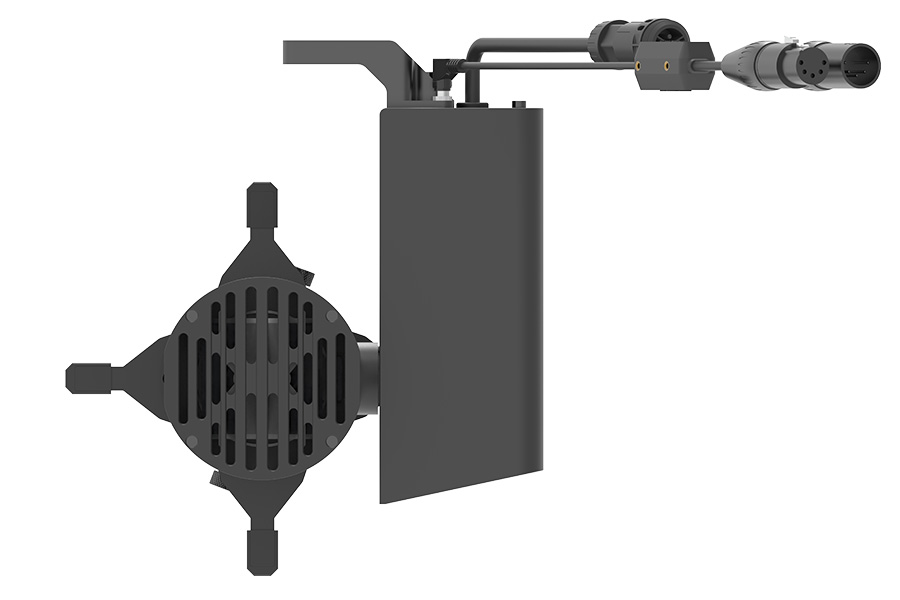

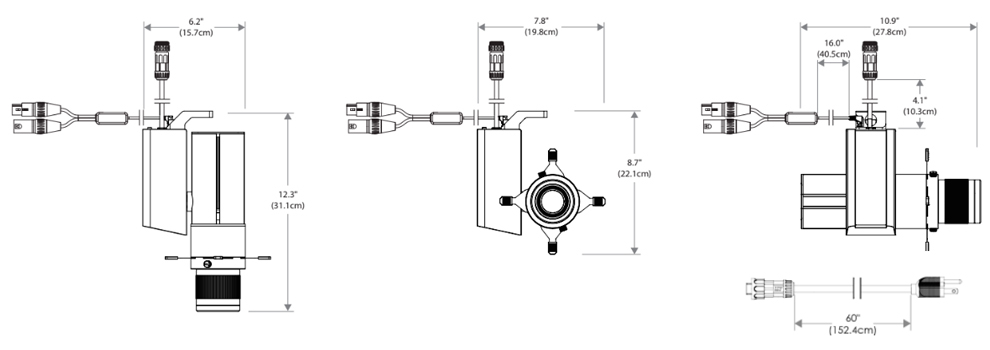

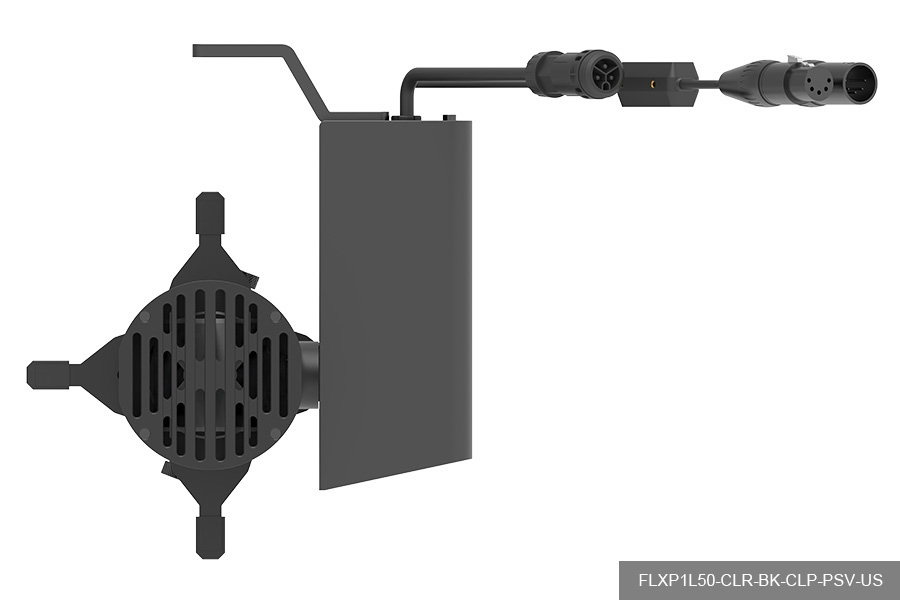

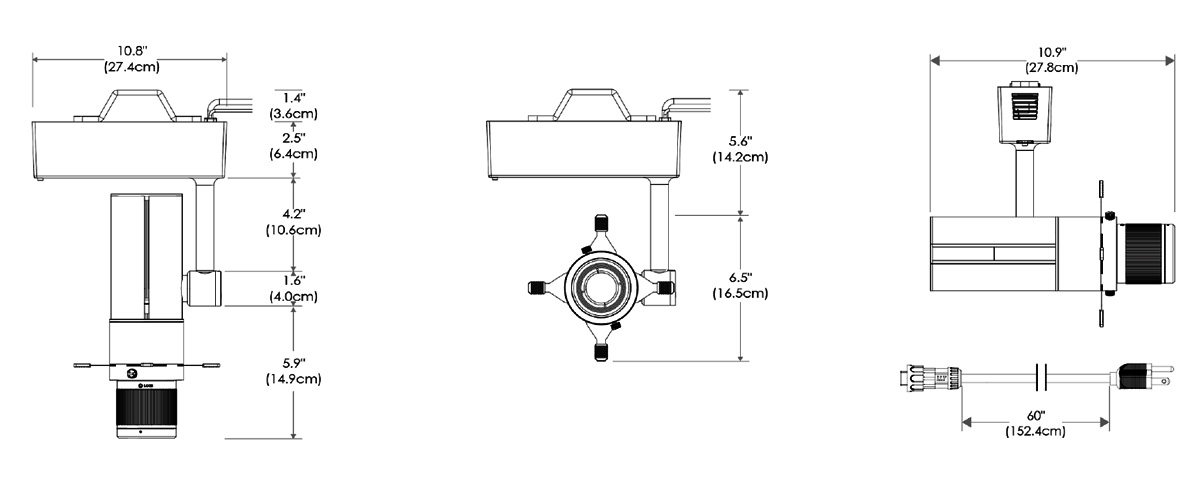

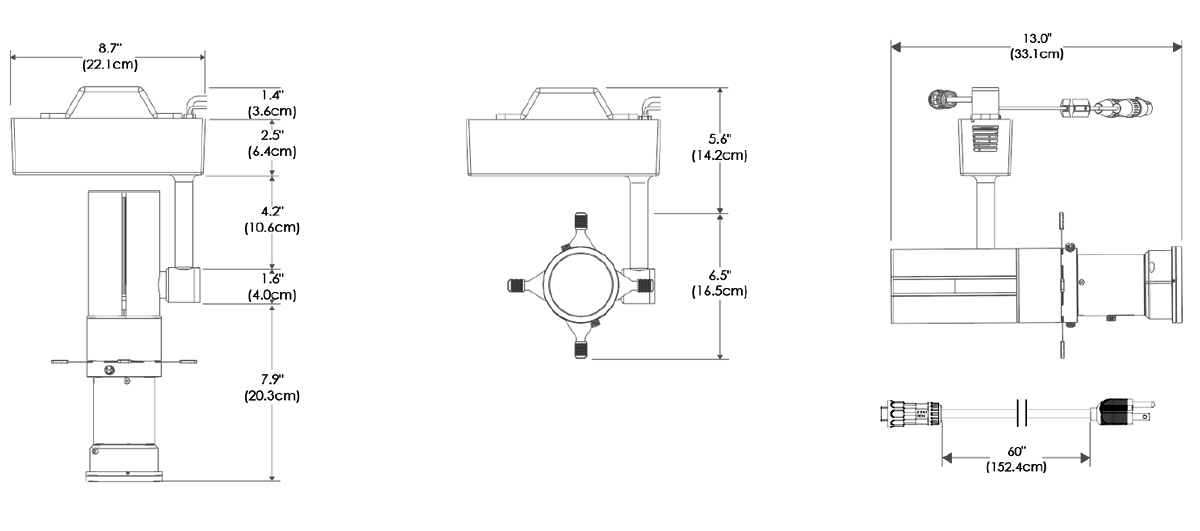

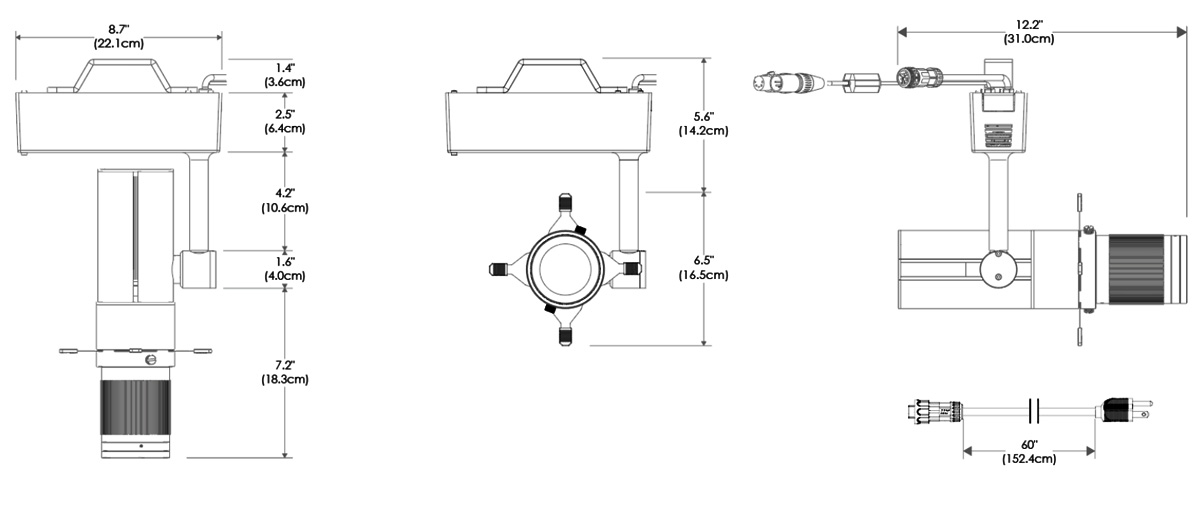

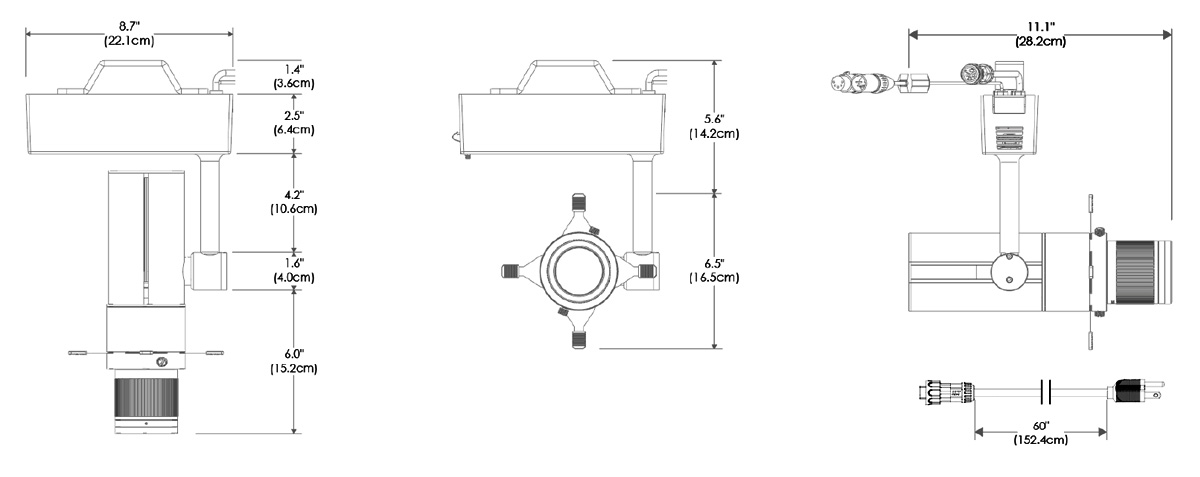

P1L (Clamp)

*All -CLP configuration models come with standard DC cables of 16 inch and AC cables of 5 ft.

PSV

PST

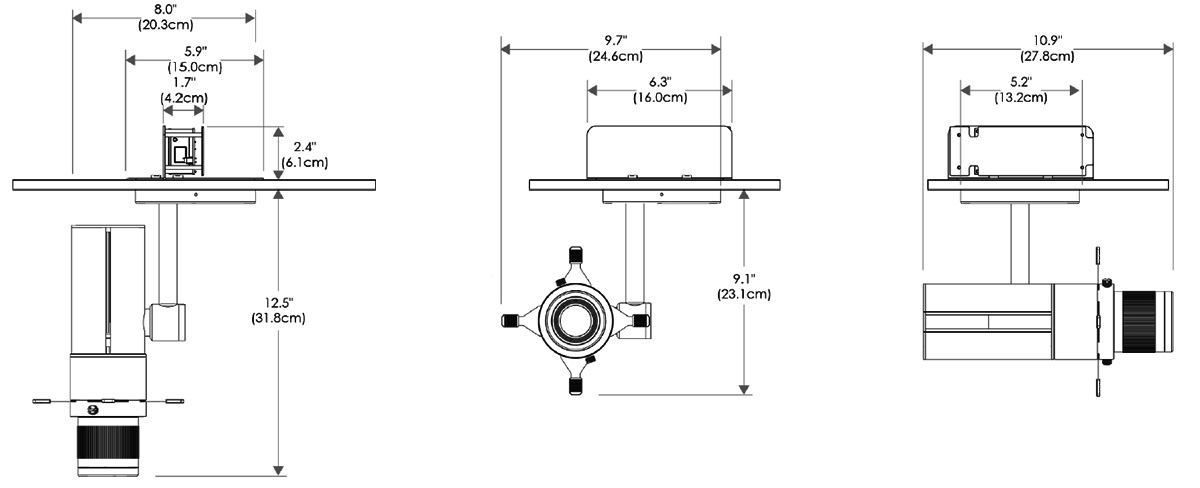

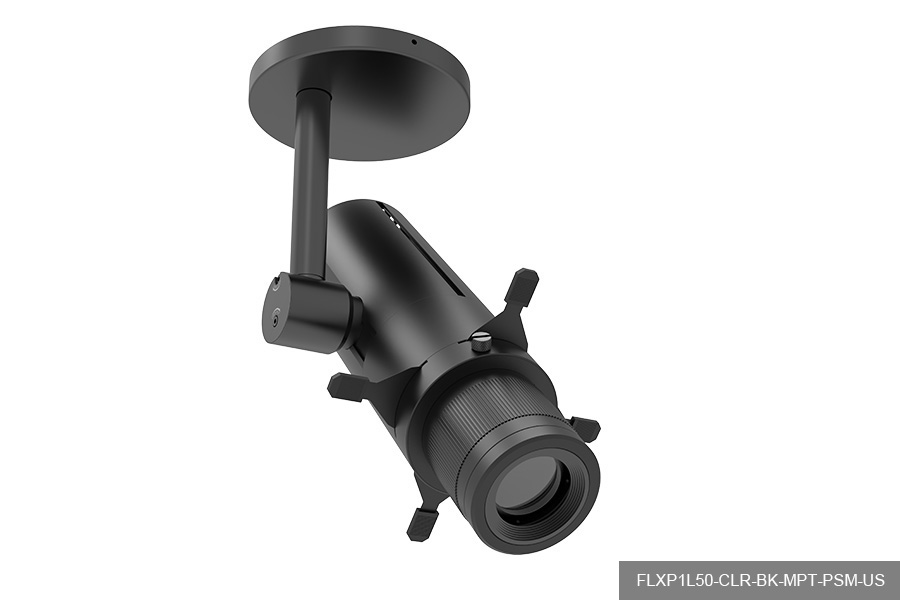

PSM

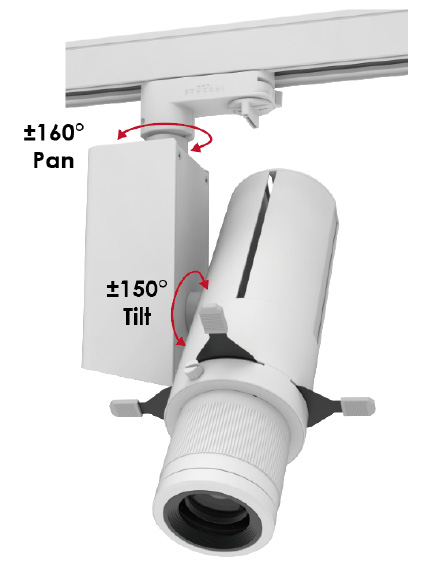

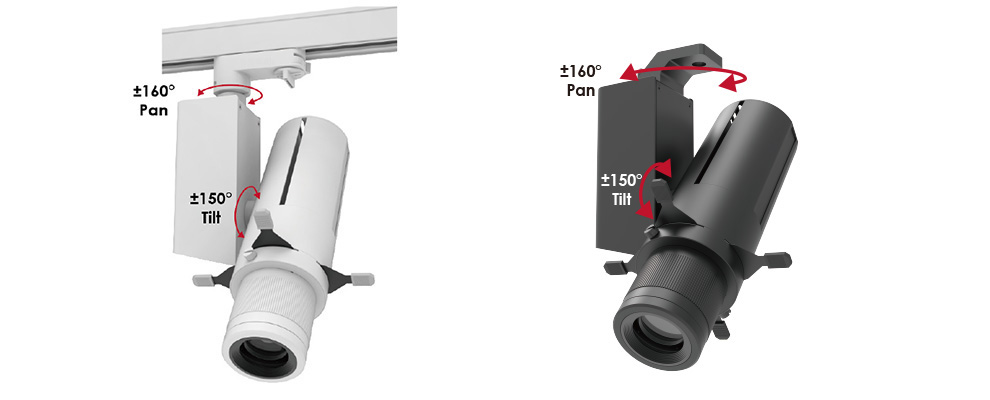

TILT/ROTATION

Tilt/rotation applies to all options

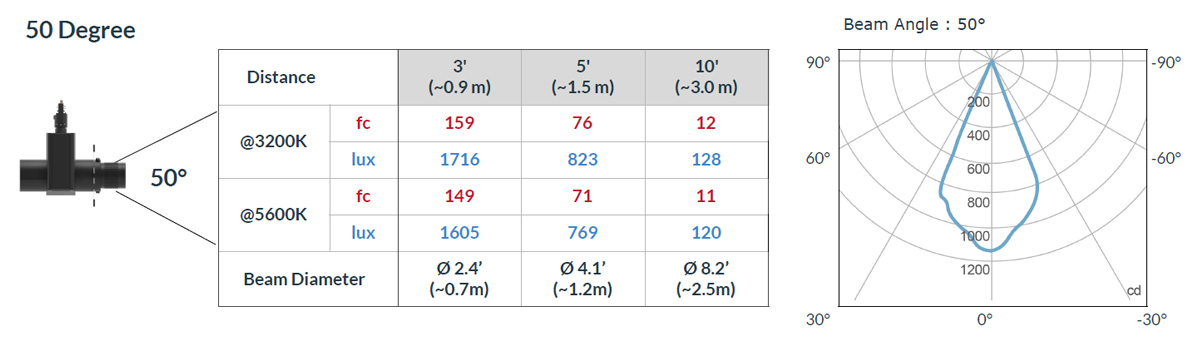

PHOTOMETRIC DATA

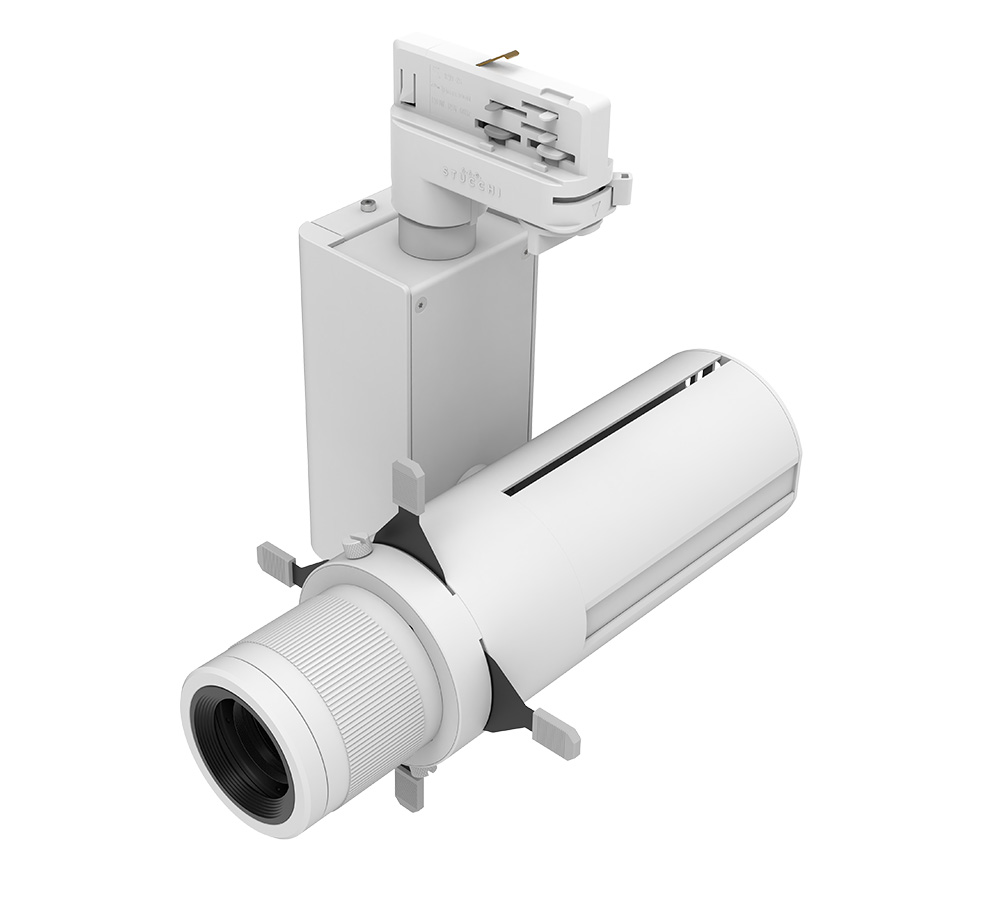

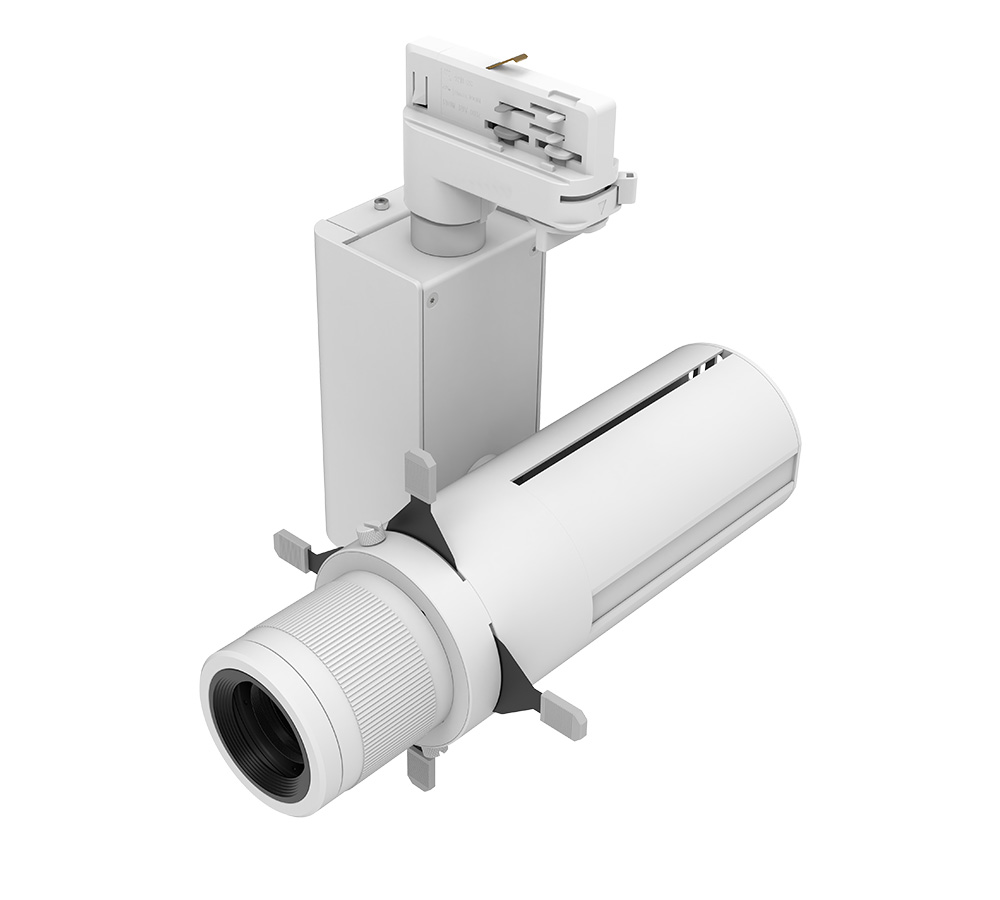

ITEMS INCLUDED

Track Type

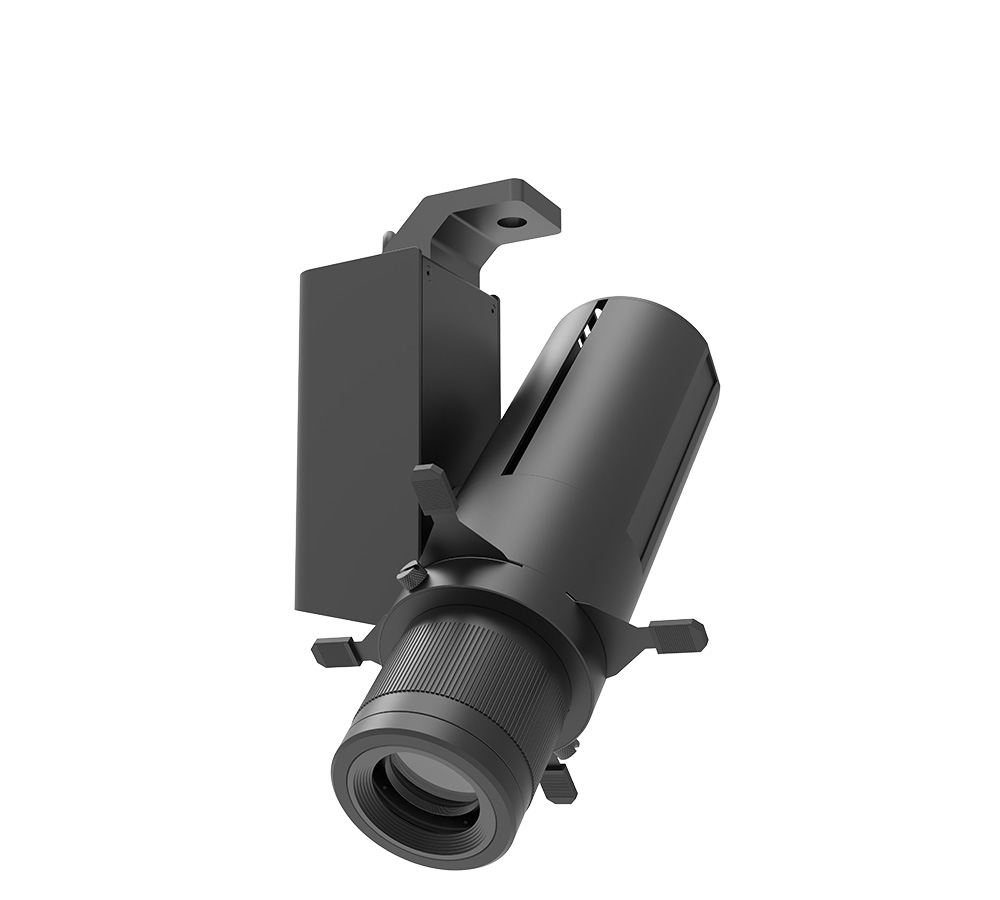

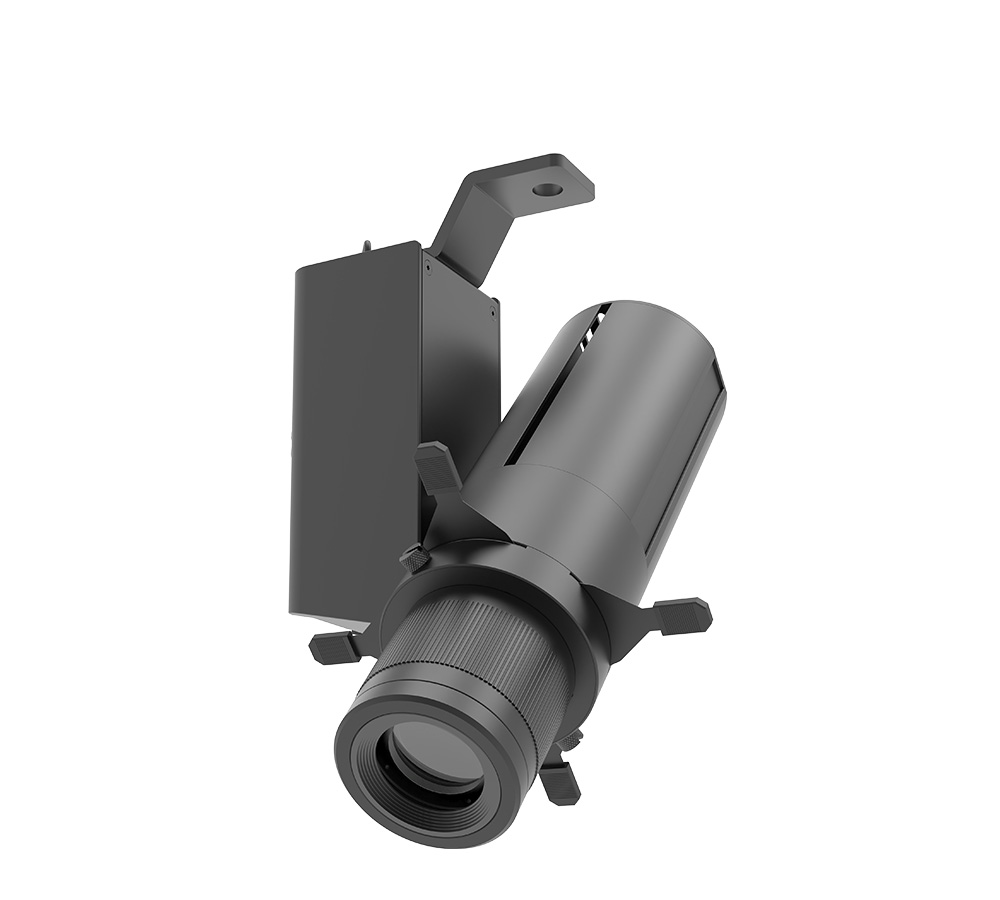

Clamp Type
