Model No: FLXP180S

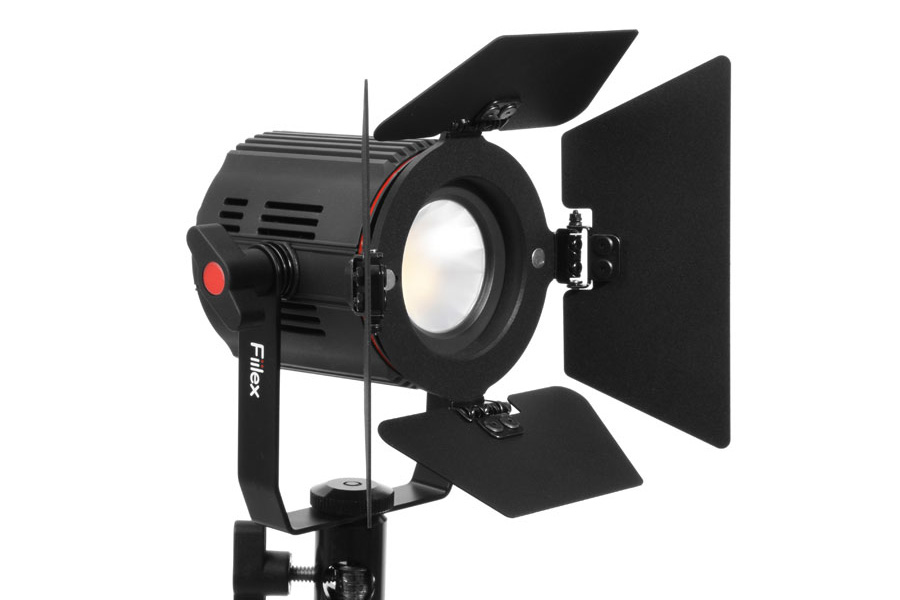

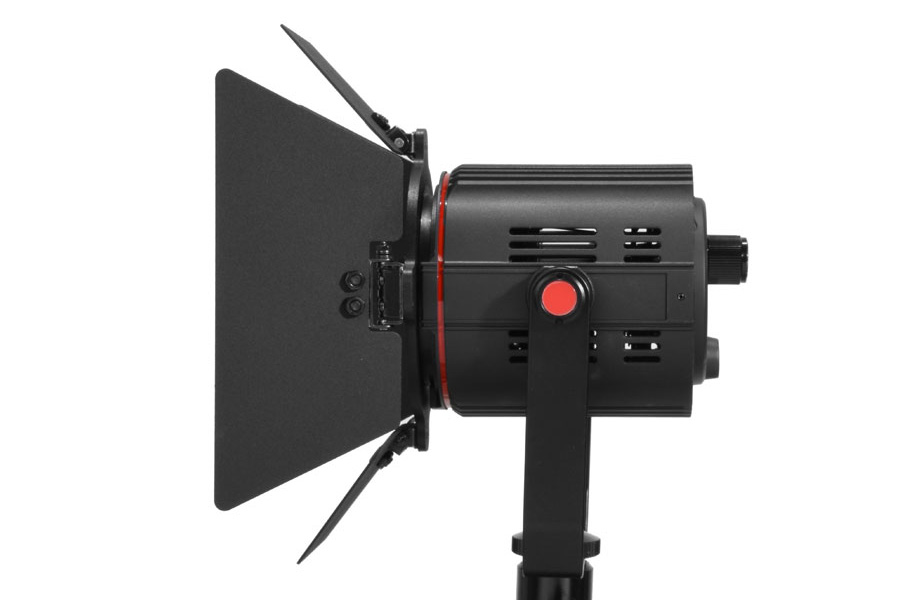

P180S ENG On-Camera Light

  • Fiilex P180S ENG On-Camera Light
  • Fiilex P180S ENG On-Camera Light
  • Fiilex P180S ENG On-Camera Light
  • Fiilex P180S ENG On-Camera Light
  • Fiilex P180S ENG On-Camera Light
  • Fiilex P180S ENG On-Camera Light
  • Fiilex P180S ENG On-Camera Light
  • Fiilex P180S ENG On-Camera Light

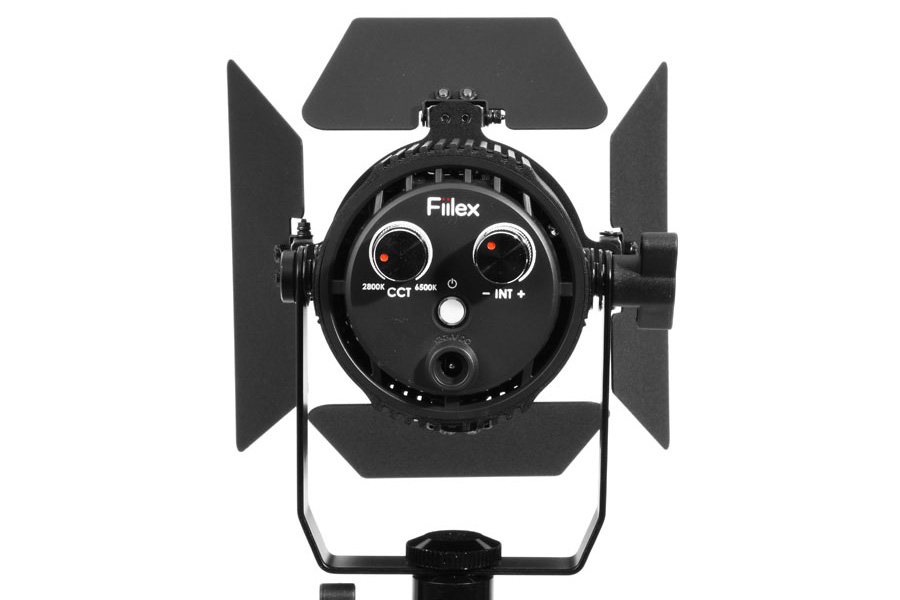

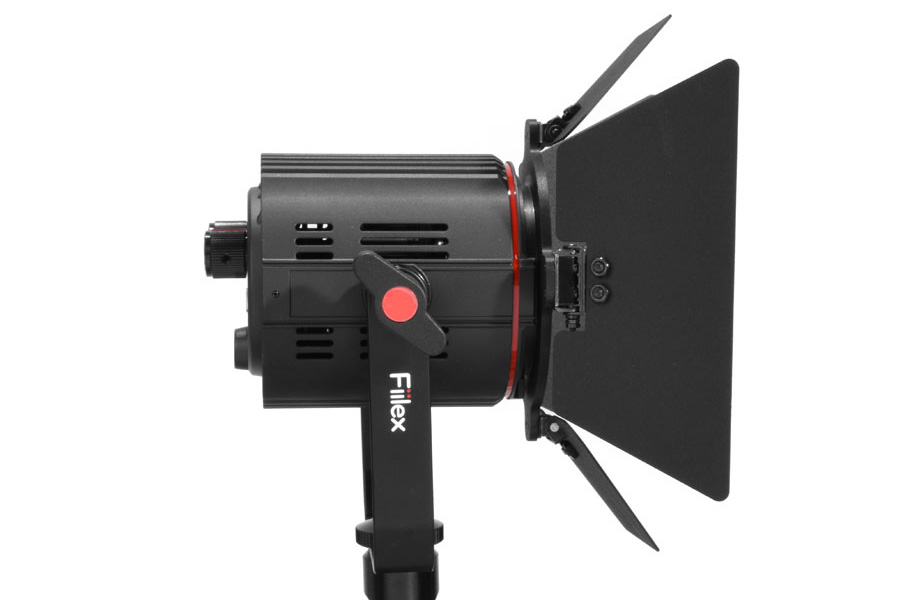

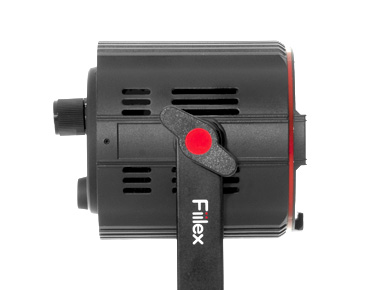

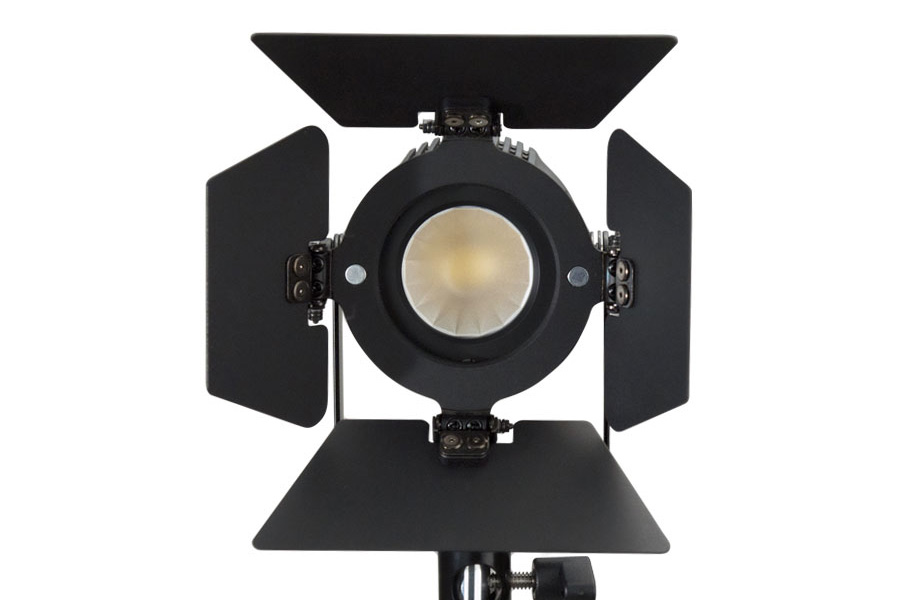

Fiilex P180S ENG On-Camera Light
Fiilex P180S ENG On-Camera Light
Fiilex P180S ENG On-Camera Light
Fiilex P180S ENG On-Camera Light
Fiilex P180S ENG On-Camera Light
Fiilex P180S ENG On-Camera Light
Fiilex P180S ENG On-Camera Light
Fiilex P180S ENG On-Camera Light
  • Overview
  • Specifications & Downloads
  • Video & Gallery
  • Photometric & Spectral Data

Meet the P180S, a revolutionary on/off camera light that can go to the extreme reaches of the world to chase the perfect story anywhere. Durable and powered by AC or broadcast battery, this compact ENG light withstands the elements to work as beautifully in freezing northern Canada as it does in the humid Amazon. The P180S features high CRI that brings color to life and the dimmable, color tunable light makes those indoor/outdoor transitions seamless, matching to daylight or tungsten sources with just the turn of a dial. Whether mounted on your camera or used in a traditional interview set-up, this brilliant LED works hard so you don't have to.

FEATURES

  • 2800-6500K continuous CCT tuning
  • 200W tungsten output (40W draw)
  • High CRI values at every color temperature
  • Dims to 0% without flicker or color shift
  • Precise color calibration for consistent quality
  • Water resistant (IP-24)
  • Weighs less than 2 lbs
  • Supports 12-24V battery input with D-Tap accessory
  • Available in portable light kits
  • Optional light modifiers available
Separator

ITEMS INCLUDED

(1) P180S Light Head

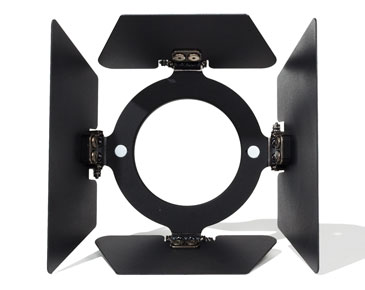

(1) Barndoor

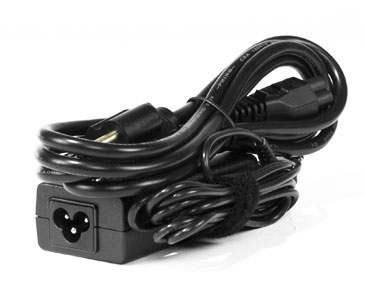

(1) AC/DC Power Adapter

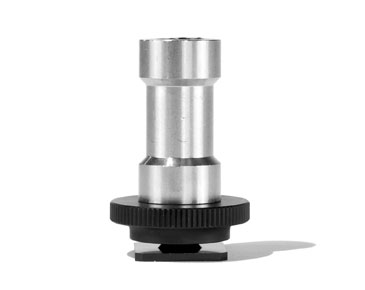

(1) Cold Shoe Mount

ACCESSORIES

Fiilex P3 Dome Diffuser 1-Stop
FLXP3CLR-DOME1S
Fiilex D-Tap Cable 2ft Curled D-Tap to Barrel
FLXPSU-DCJ2C-DTAPBRL
Fiilex D-Tap to Barrel Cable, 96"
FLXPSU-DCJ96S-DTAPBRL

SPECIFICATIONS

Beam Angle47º
CCT Range2800 - 6500K Continuous Tuning
CRI96 Typical
Dimming100-0% Flicker Free
Light EngineDense Matrix LED
Power Draw40W Max
DC Input12 - 24V DC (32W DC Max)
AC Input100 - 240V AC, 50-60Hz
Weight1.2lbs / 0.5kg
SizeDia 2.9” x L 3.8” x H 6.2”/ Dia 7.4cm x L 9.6cm x H 15.7cm
MountBaby Stud 5/8" Female (16mm)
IP RatingIP-24 (Dust & Water Resistant)
Thermal DesignAdvanced Vapor Cooling System (Fan Cooled)
Operating Temperature 32-104 º F / 0-40 ºC

Separator

DOWNLOADS

User Guide
Data Sheet

VIDEOS

"On Location" Has Never Even Easier

Changing Tides Media faced formidable lighting challenges when documenting Mission 31, a historic campaign to live 31 days in an undersea lab. See why the crew chose the weather-resistant Fiilex P180S to light this extreme environment. [03:00]Play

The ENG Game Changer

Shawn Dennison, owner of production studio D-Pro, shows how the P180S transforms his workflow. One of the most versatile ENG lights on the market, the P180S's color tunability and compact form factor let Shawn work quickly and move freely from outdoors to indoors while still getting the precise colors and strong light he needs. [01:52]Play

Innovative Design, Unbeatable Results.

The P180S has a 200W equivalent output with a 40W draw, and is both fully dimmable and color tunable. The single source light has a high CRI and can be easily softened and modified with a wide range of accessories. With the P180S's durable solid-state technology and enhanced weather protection, you can follow the story wherever it takes you. [00:30]Play

Weather Resistance - Let It Rain!

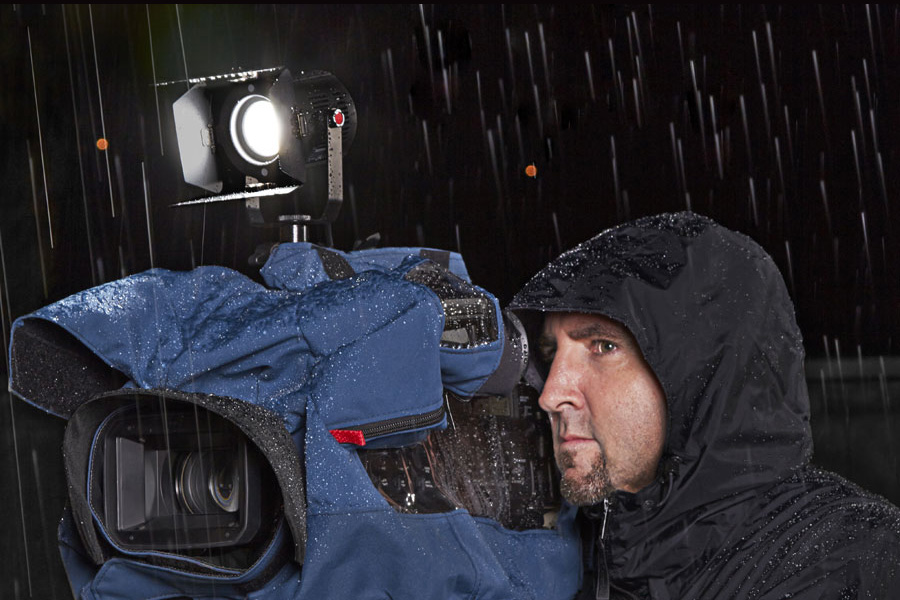

The Fiilex P180S is a LED source created specifically for ENG crews who chase news around-the-clock. Its IP-24 rating allows camera operators to capture the best images in the field, rain or shine. Watch the IP Rating water test to see just how well this LED holds up in the elements. [01:07]Play

Get Soft Light in Seconds

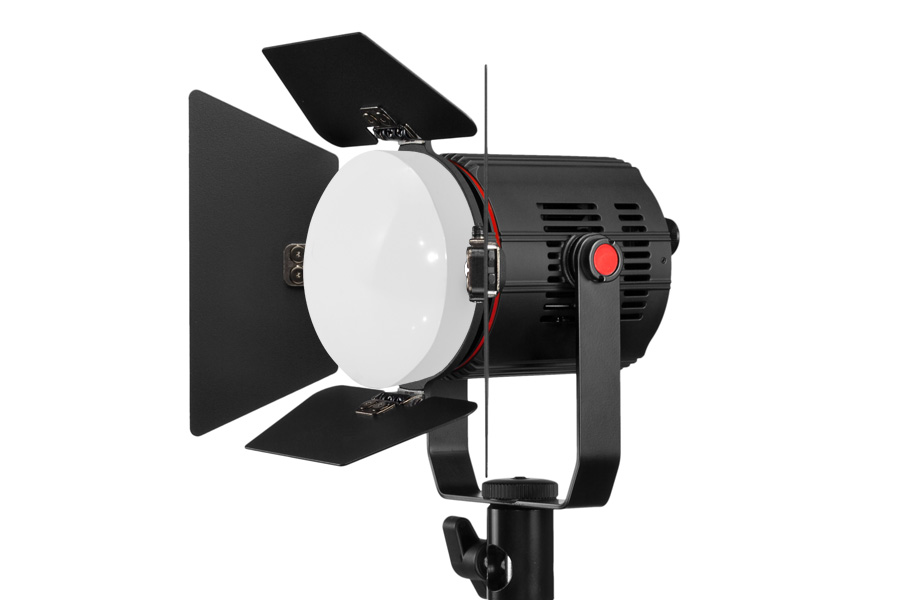

The Fiilex Dome Diffuser spreads and softens light, great for lighting people. Its compact design lets you get diffuse light even when the light is on-camera, introducing different textures into your shot. The dome uses our magnetic attachment system to easily pop on and off of your P180S. [00:16]Play

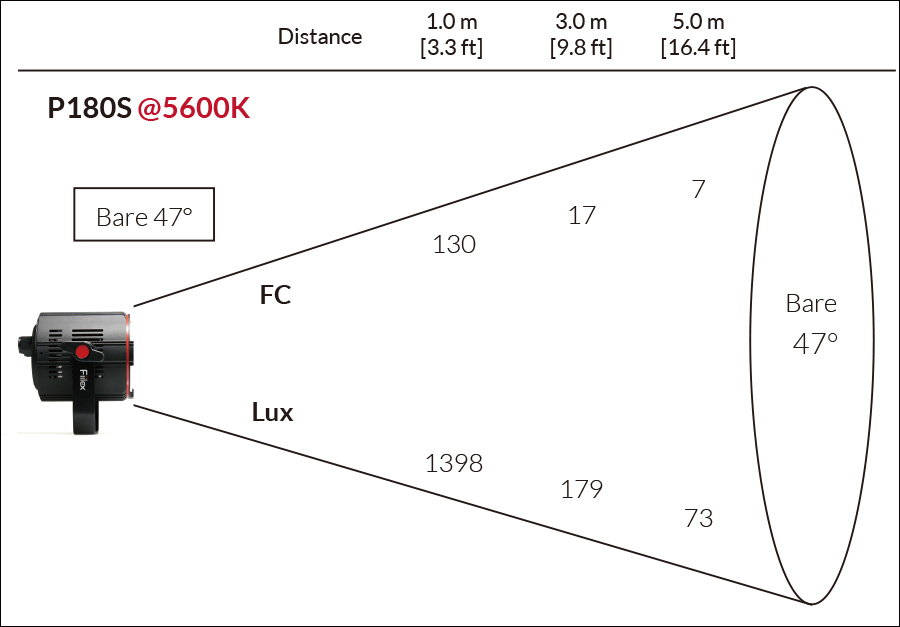

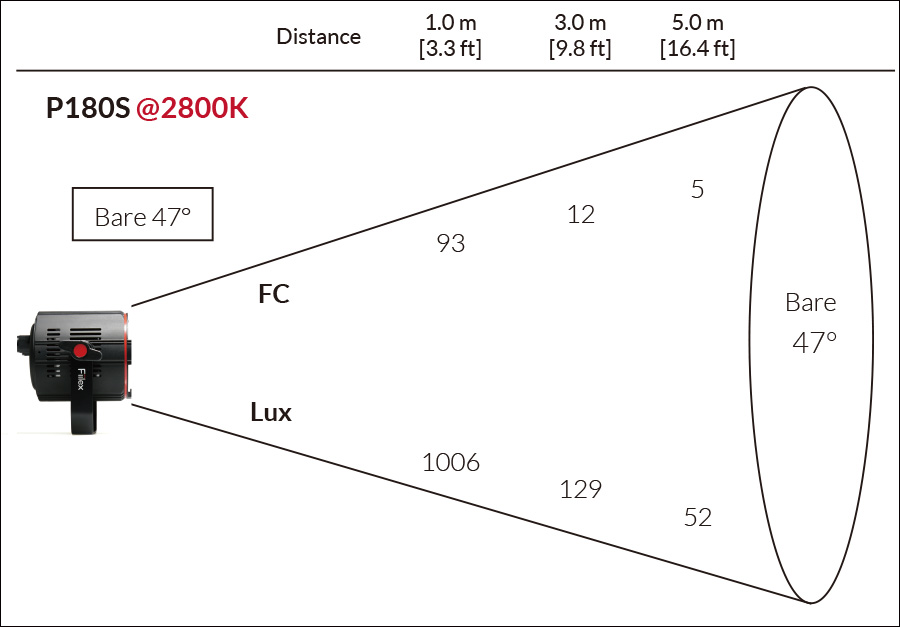

PHOTOMETRIC DATA



Separator

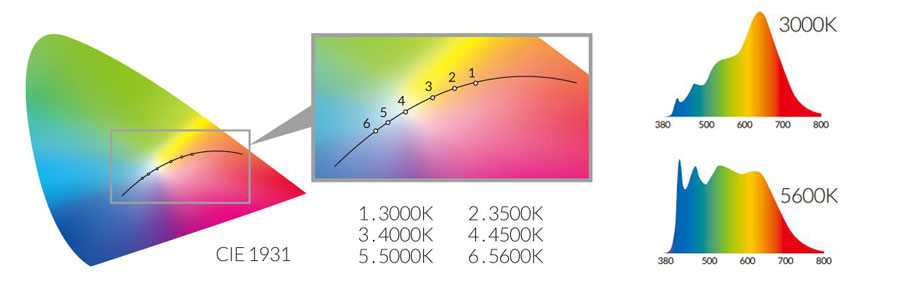

SPECTRAL DATA

CRI
Measurement		 R1R2R3R4R5R6R7R8R9
3200K989891979996979796
5600K979896959695979691
6500K979897959596979691
CRI
Measurement		 R10R11R12R13R14R15CRI
Ra		CRI
Extended		TLCI
Results
3200K929686999497979696
5600K929587979797969597
6500K949487989896969597

*Values in this table are typical.
**CRI Ra is the averaged result of R1 to R8; CRI Ext is the averaged value of R1 to R15. Typical values shown.
