Fiilex G3 COLOR

90W LED Ellipsoidal

90W Cinema-Grade Full-Color Ellipsoidal Light
360° Rotating Barrel
Razor-Sharp Cuts
19°, 36°, 50° Lens Tube Options

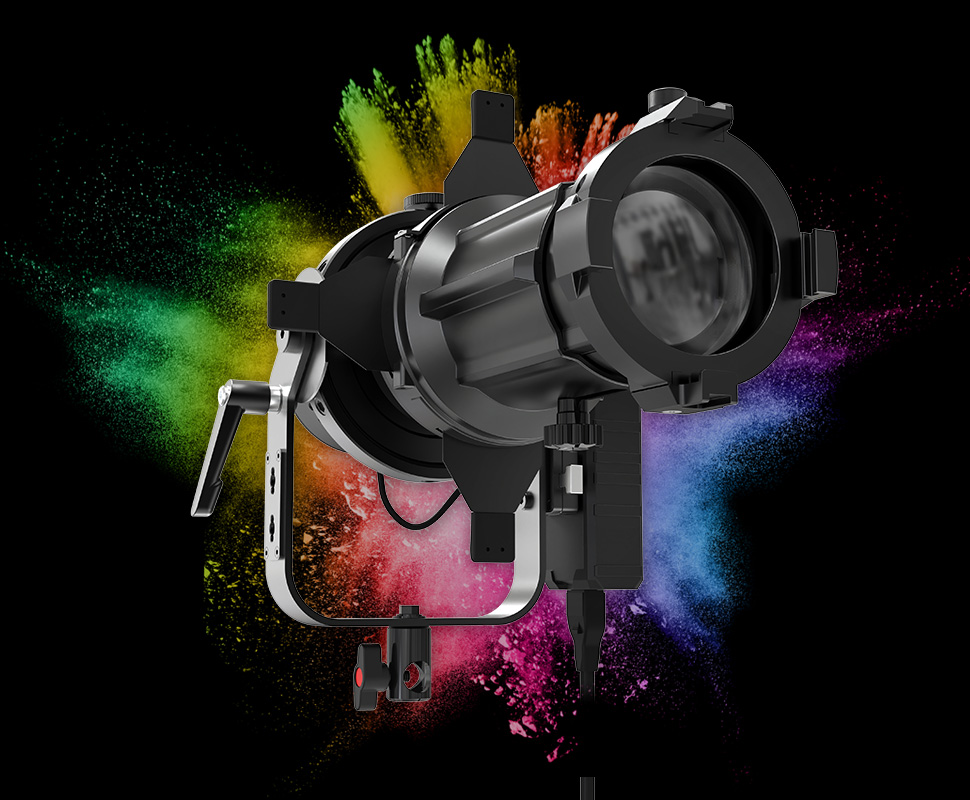

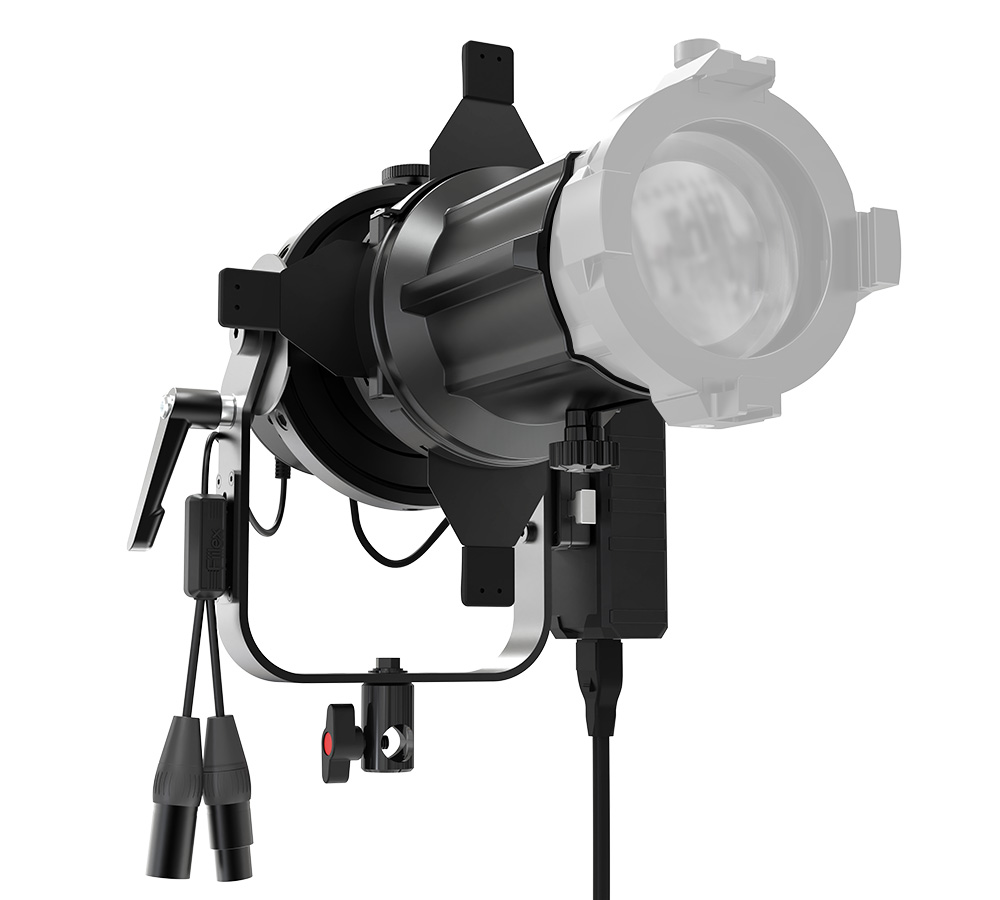

Fiilex G3 COLOR

The G3 COLOR is a cinema-grade 90W full-color ellipsoidal with razor-sharp cuts and a unique 360 degree rotating barrel. The beam produced from either the 19° or 36° lens tube is uniform and bright without any color fringing. At the core of the G3 is the latest generation of Fiilex's patented Dense Matrix LED that adheres to the highest standards of dimming and color calibration. The G3 ellipsoidal gives you full control and can be rigged and hidden anywhere on production sets.


Warning: Undefined array key "text" in C:\WebSite\fiilex.com\products\compatible\inner_feature.php on line 33

Warning: Undefined array key "text" in C:\WebSite\fiilex.com\products\compatible\inner_feature.php on line 33

Request More Info



All fields are required for submitting this request


Name*
Email*
Phone*
City*
State/Province*
Country*
You are interested in Fiilex products, because you are*
Comments*

Experience with Fiilex, Affiliations (Local 728/479/52/873/600 etc), Upcoming Projects.


Enter the displayed 6-character code in the box below
(6 characters, no space in between, not case sensitive.)


The above information was sent successfully!

Separator

FIXTURES & KITS

Fiilex G3 COLOR
FLXG3CLR
Fiilex G3 COLOR K1 Kit
FLXG3CLR-K1-KIT
Separator

ACCESSORIES

Fiilex RPU
FLXRPU-HEAD
Fiilex G3 Leko Lens Tube 19deg
FLXG3CLR-LEKO19
Fiilex G3 Leko Lens Tube 36deg
FLXG3CLR-LEKO36
Fiilex G3 Leko Lens Tube 50deg
FLXG3CLR-LEKO50
Fiilex Leko Gobo Holder
FLXG3CLR-GOBOHOLDER
Fiilex Leko Gobo Set of 4
FLXG3CLR-GOBOSET
Fiilex Leko Iris
FLXG3CLR-IRIS
Fiilex Locking DMX Adapter TRRS to XLR5
FLXG3CLR-TRRS2XLR5
Fiilex Flexible Energy Source 270
FLXFES-270
Fiilex D-Tap Cable 2ft Curled D-Tap to Barrel
FLXPSU-DCJ2C-DTAPBRL
Fiilex D-Tap to Barrel Cable, 96"
FLXPSU-DCJ96S-DTAPBRL
Fiilex 90W V-Mount PSU
FLXG3CLR-PSU-90V

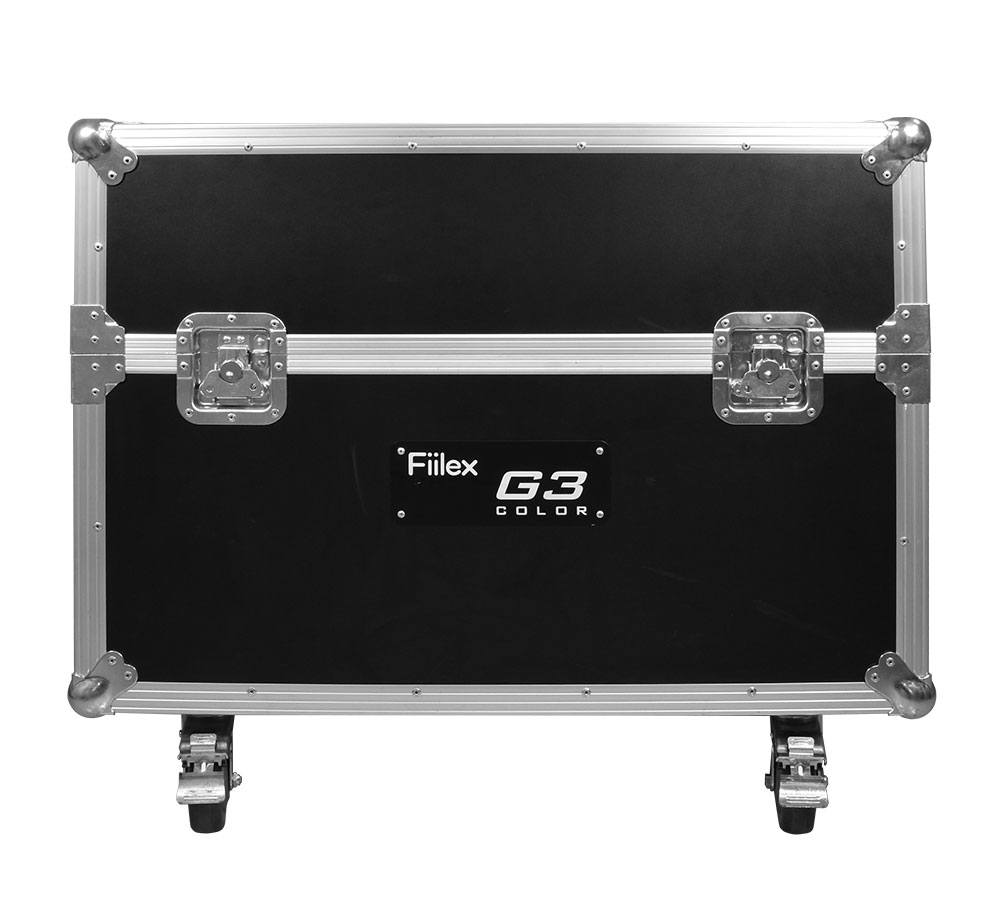

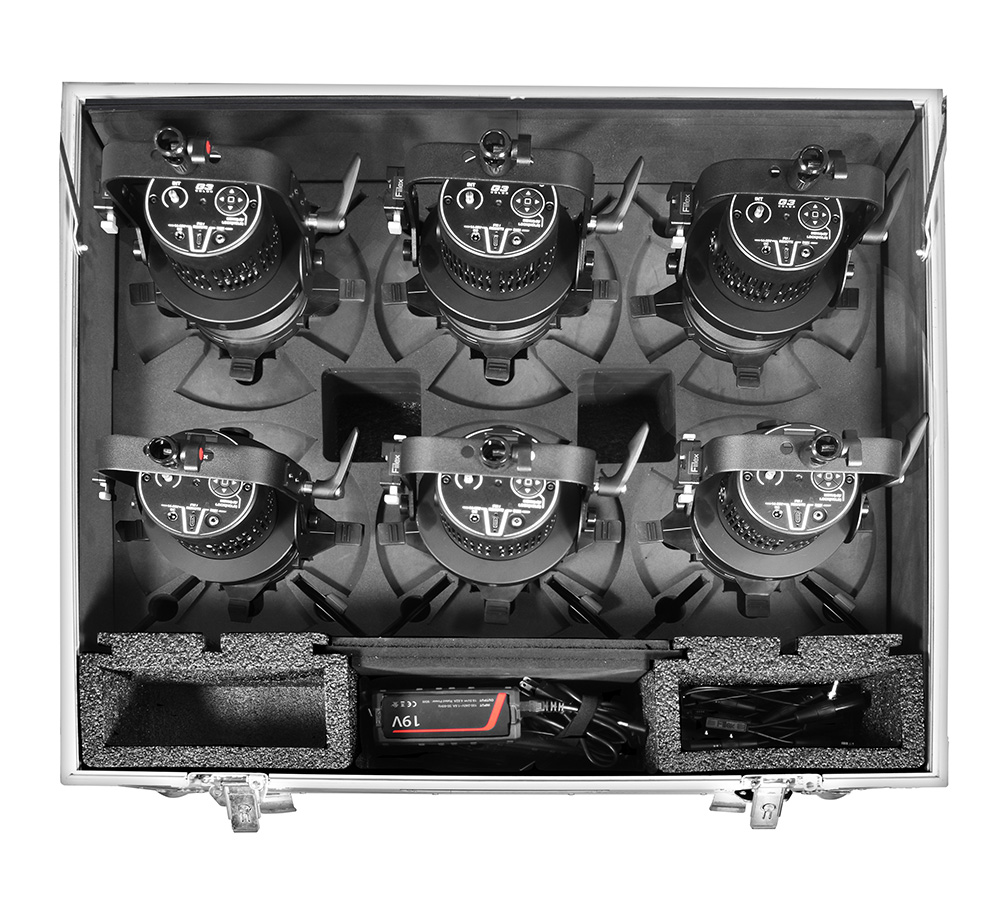

Fiilex G3 D6 Case
FLXG3CLR-D6-CASE
Separator

SPECIFICATIONS

Beam Angle19° / 36° / 50° lens tube
CCT Range2000-10000K continuous tuning + magenta/green shift
CRI / TLCI 95 / 90 typical
Control Modes CCT, HSI, RGBW, GEL, CCTRGBW, CCTHSI, CIExy, ICTHS, and more
Dimming100 - 0% flicker free
Dimming Modes / CurveSmooth, Sharp / Linear, Gamma
Light EngineDiCon Dense Matrix LED
Power Consumption90W max AC | 80W max DC
BTUs/hour307 (BTUs/hour) max
DC Input14 - 30V DC (via 5.5mm x 2.5mm Barrel)
AC Input100 - 240V AC, 50 ~ 60Hz
DMX/RDM PortTRRS (XLR-5 via adapter)
Wireless Control Integrated LumenRadio CRMX
USB Power Output5V/1A (via USB-C)
WeightFixture: 6.7 lbs / 3.0kg (includes lens tube) | Power adapter: 1.1 lbs/0.5kg
Size (L x W x H)14.4" x 8.6" x 11.0" / 36.6cm x 21.8cm x 27.8cm
Mount TypeBaby stud 5/8" female (16mm)
IP RatingIP-X5 (water-resistant)
Thermal DesignControllable fan
Operating Temperature 0-40ºC / 32-104ºF
GoBo Size M Size (Diameter 66mm / Max Image: 48mm / Max Thickness: 1mm)
