900W LED Fresnel

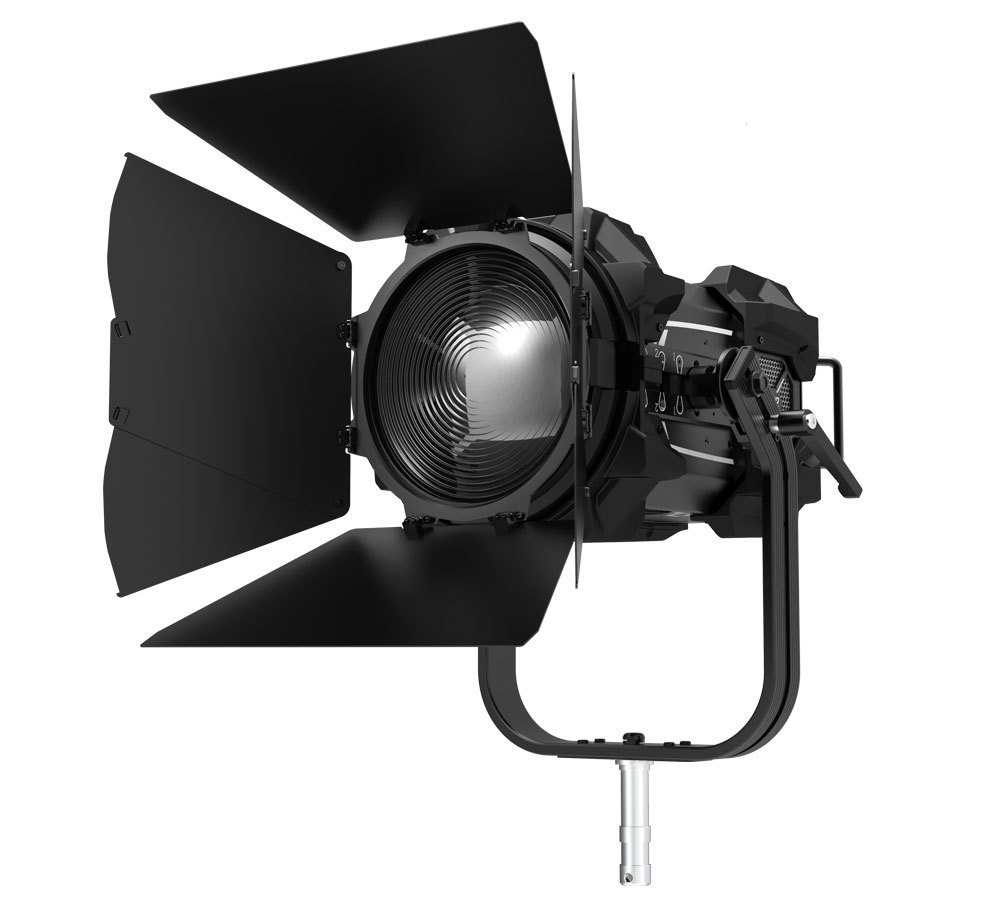

Fiilex Q10 COLOR-LR is a 900W Color LED Fresnel with a 11° to 65° spot-to-flood range. This fixture is recognized by lighting designers as a "Modern Day 5K" and can replace old Tungstens on large productions. Each Q10 COLOR-LR is calibrated precisely to the highest color standards and delivers the same uniform and consistent performance like all other Fiilex products.
Warning: Undefined array key "text" in C:\WebSite\fiilex.com\products\compatible\inner_feature.php on line 33
Request More Info
The above information was sent successfully!
Separator
FIXTURES & KITS
FLXQ10CLRLR

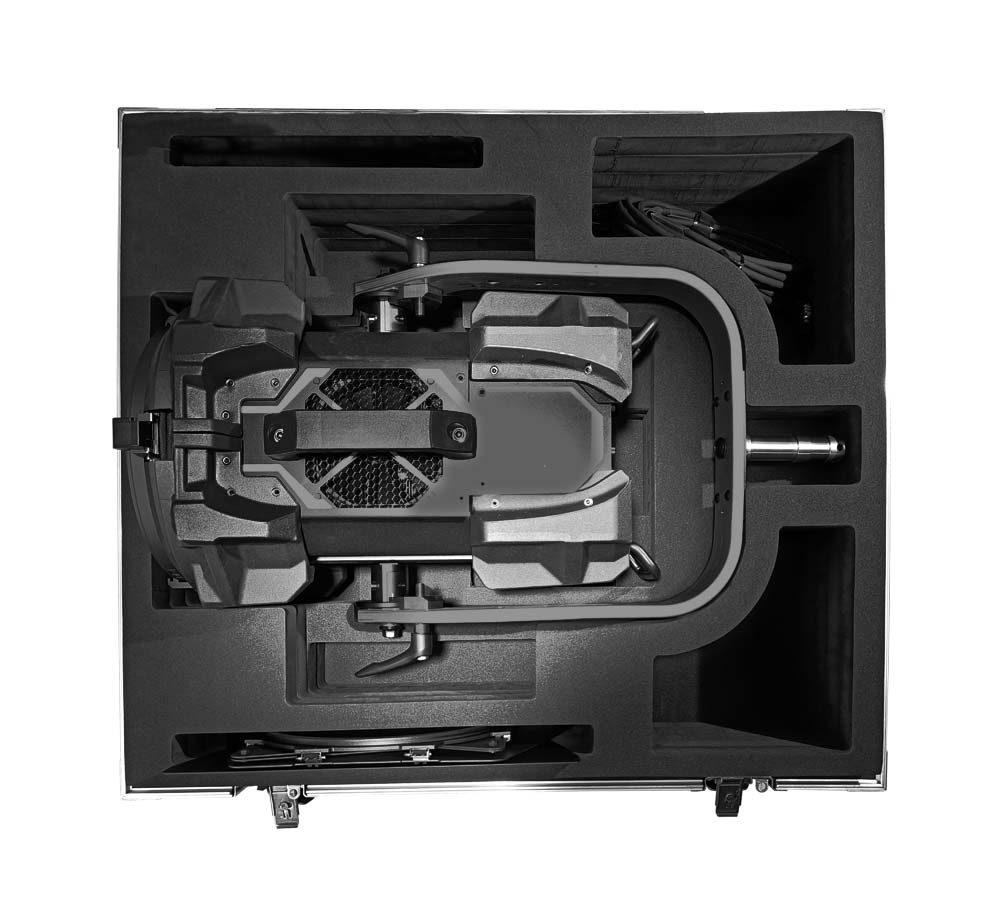

FLXQ10CLRLR-A1-KIT
Separator
ACCESSORIES
FLXRPU-HEAD

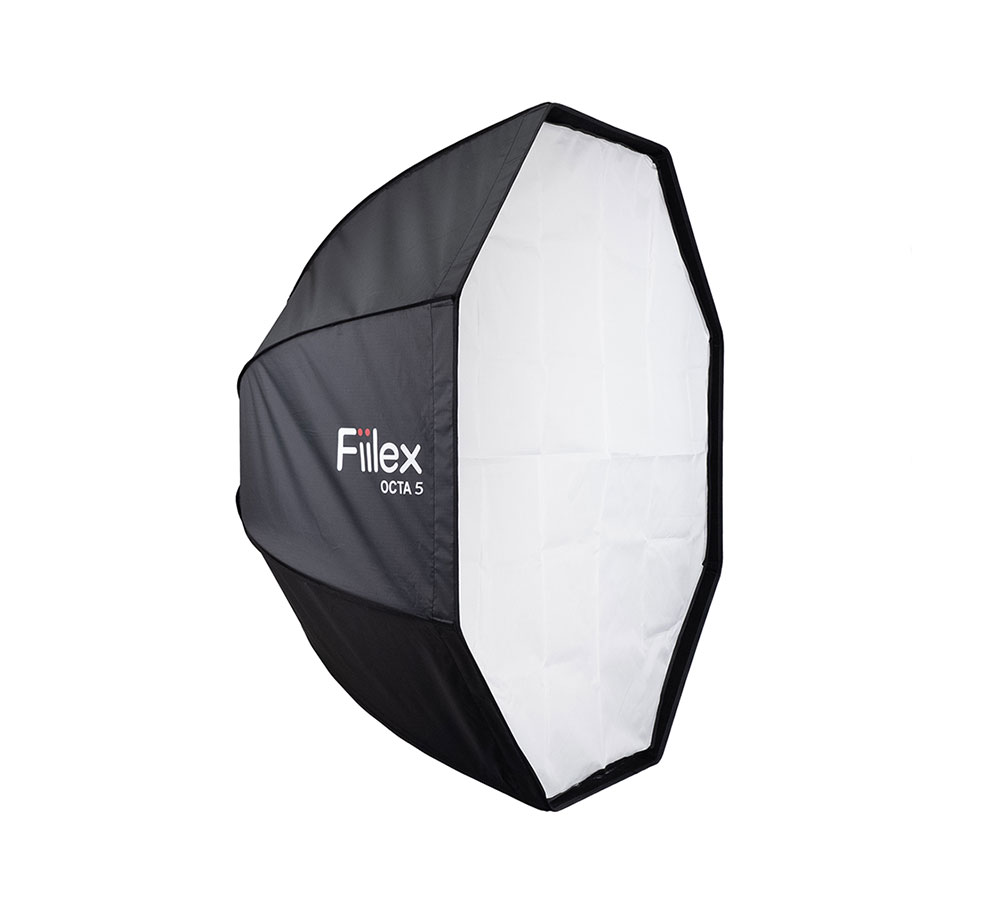

FLXQ10CLR-OCTA5

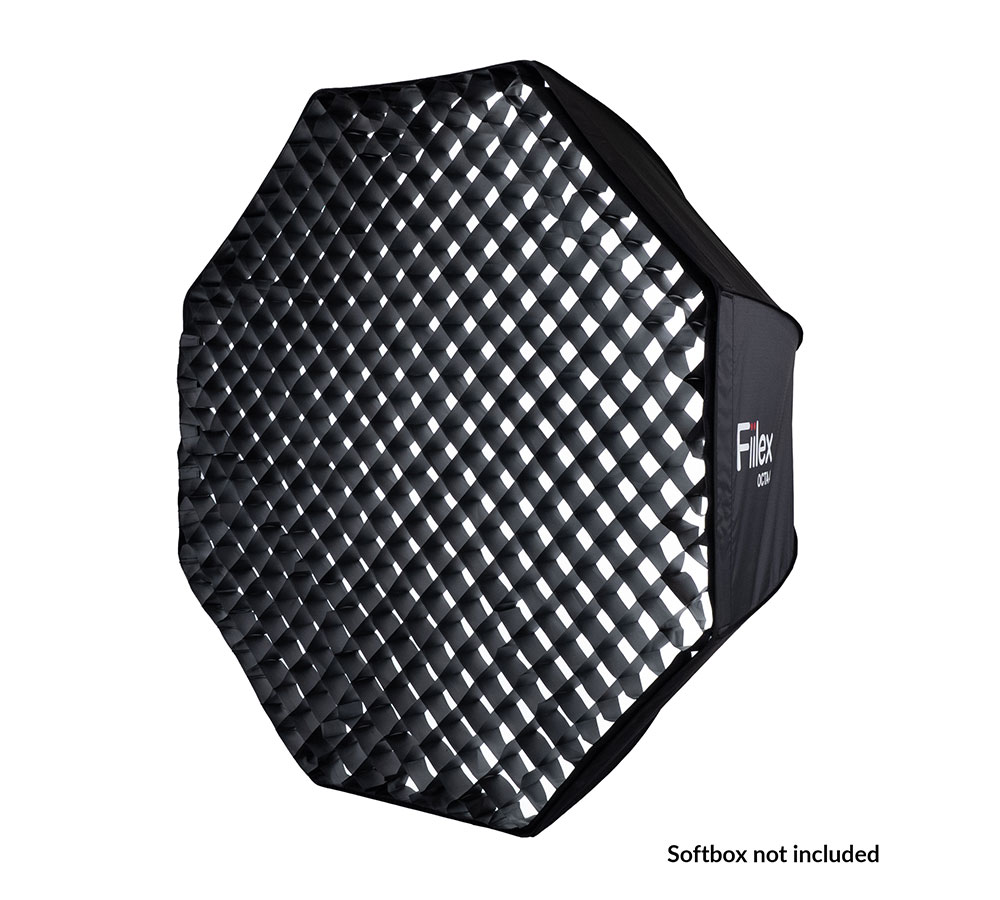

FLXQ10CLR-OCTA5-GRID

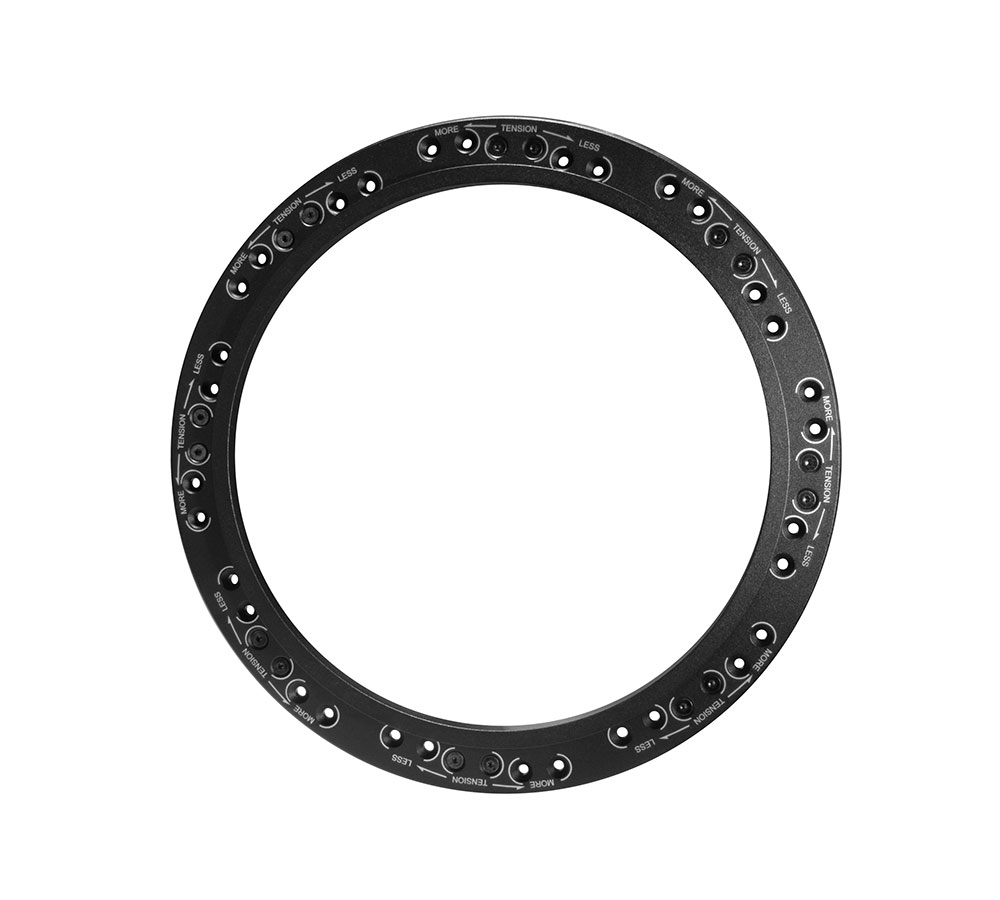

FLXQ10CLR-SPRG1
Separator
SPECIFICATIONS
| Fresnel Diameter | 10" |
| Beam Angle | 11°-65° with Fresnel (78° without Fresnel) |
| CCT Range | 2000-10000K continuous tuning + magenta/green shift |
| CRI / TLCI | 95 / 90 typical |
| Control Modes | CCT, HSI, RGBW, GEL, CCTRGBW, CCTHSI, CIExy, ICTHS, and more |
| Dimming | 100 - 0% flicker free |
| Dimming Modes / Curve | Smooth, Sharp / Linear, Gamma |
| Light Engine | DiCon Dense Matrix LED |
| Power Consumption | 900W max AC | 850W max DC |
| BTUs/hour | 3071 (BTUs/hour) max |
| DC Input | 48V DC (via powerCON 32A) |
| AC Input | 100 - 240V AC, 50 ~ 60Hz (via powerCON TRUE1) |
| DMX/RDM Port | XLR-5 |
| Wireless Control | Integrated LumenRadio CRMX |
| Ethernet | sACN, ArtNet (via etherCON) |
| USB Power Output | 5V/1A (via USB-A) |
| Weight | 44 lb / 20kg |
| Size (L x W x H) | 19.8" x 18.1" x 25.1" / 50.2cm x 45.9cm x 63.6cm |
| Mount Type | Combo (baby stud female / junior stud male) |
| IP Rating | IP-X5 (water-resistant) |
| Thermal Design | Controllable fan |
| Operating Temperature | 0-40ºC / 32-104ºF |
